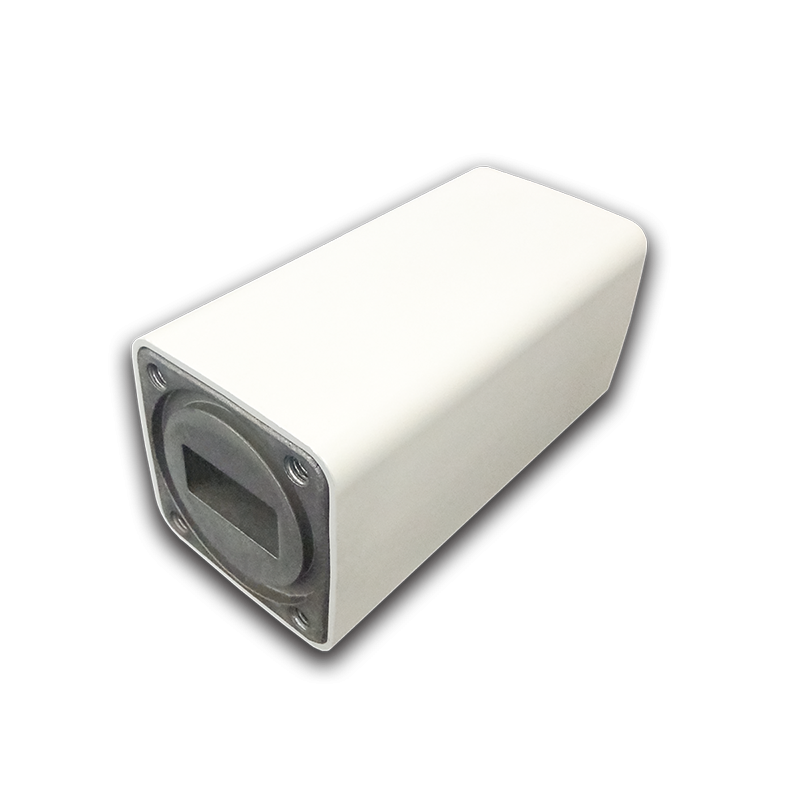

NJR2845BEF Ku-band PLL LNB
The NJR2845BEF is a high-performance Ku-band PLL LNB covering 11.7–12.2 GHz, featuring low noise (0.8 dB), high gain (57 dB), and external 10 MHz reference. It converts RF signals to L-band (950–1450 MHz) for reliable satellite communication in VSAT, broadcast, and ground station applications.
Key Features
• 11.7–12.2 GHz Ku-band operation
• 0.8 dB low noise figure
• 57 dB high conversion gain
• depends on external frequency
• 950–1450 MHz IF output
• IP67 weatherproof housing
NJR2845BEF
- Type
- Single LNBs
- Frequency Band
- Ku-Band
- Frequency Range
- 11.70 – 12.20 GHz
- Output Band
- 950–1450 MHz
- LO Frequency
- 10.75 GHz
- LO Stability
- External Reference
- Noise Figure
- 0.8 dB
- Typical Gain
- 57 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- F Type 75 Ohm
