Nisshinbo NJR2845GVN
Ku-band PLL LNB - Int. Ref.
• Input Band: 12.2–12.75 GHz
• LO Stability: ±0.5 ppm (±5 kHz)
• Noise Figure: 0.8 dB
• Output Connector: N-type, 50 Ω
Security policy
Delivery policy
Return policy

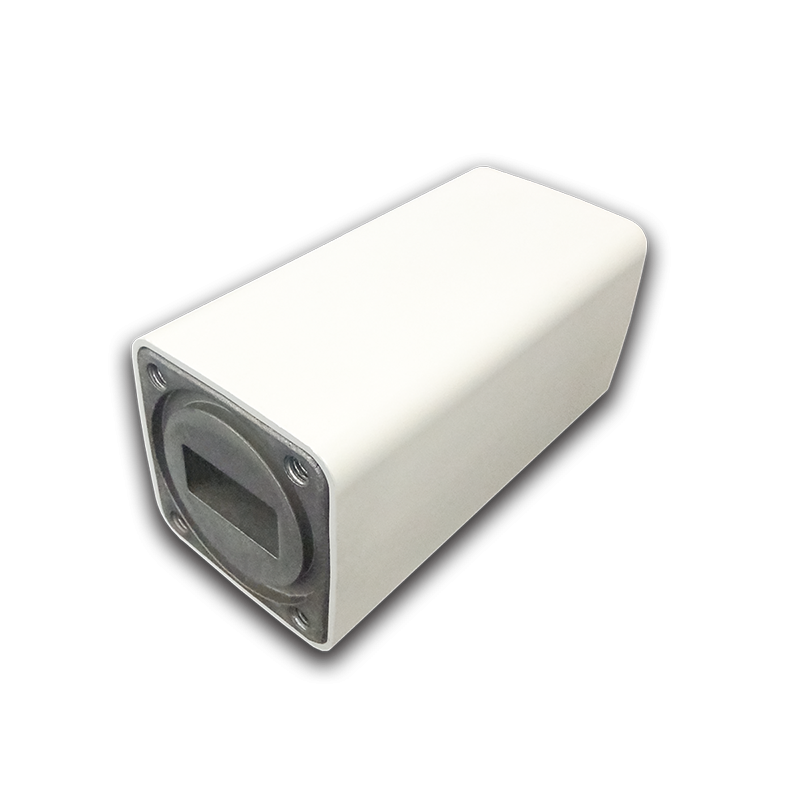

NJR2845GVN Ku-band PLL LNB
The NJR2845GVN is a high-performance Ku-band PLL LNB covering 12.2–12.75 GHz, featuring low noise (0.8 dB), high gain (57 dB), and excellent frequency stability (±0.5 ppm). It converts RF signals to L-band (950–1500 MHz) for reliable satellite communication in VSAT, broadcast, and ground station applications.
Key Features
• 12.2–12.75 GHz Ku-band operation
• 0.8 dB low noise figure
• 57 dB high conversion gain
• ±0.5 ppm frequency stability
• 950–1500 MHz IF output
• IP67 weatherproof housing
NJR2845GVN
- Type
- Single LNBs
- Frequency Band
- Ku-Band
- Frequency Range
- 12.20 – 12.75 GHz
- Output Band
- 950–1500 MHz
- LO Frequency
- 11.25 GHz
- LO Stability
- ±5 kHz
- Noise Figure
- 0.8 dB
- Typical Gain
- 57 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- N Type 50 Ohm
Specific References
Ku-band PLL LNB - Int. Ref.
• Input Band: 12.2–12.75 GHz
• LO Stability: ±0.5 ppm (±5 kHz)
• Noise Figure: 0.8 dB
• Output Connector: N-type, 50 Ω
