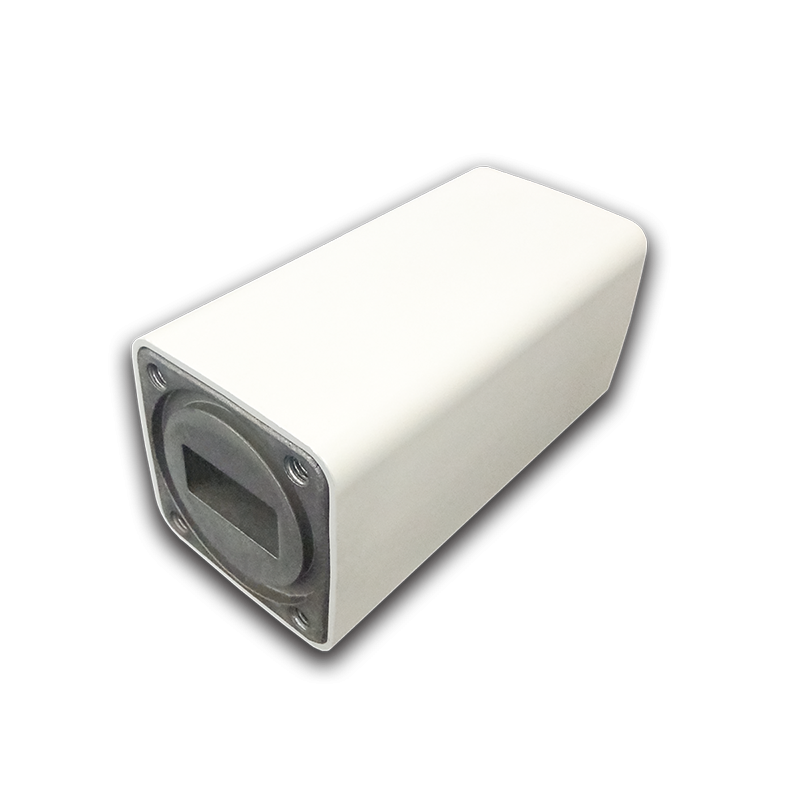

NJR2845CHN Ku-band PLL LNB
The NJR2845CHN is a high-performance Ku-band PLL LNB covering 12.25–12.75 GHz, featuring low noise (0.8 dB), high gain (57 dB), and excellent frequency stability (±10 ppm). It converts RF signals to L-band (950–1450 MHz) for reliable satellite communication in VSAT, broadcast, and ground station applications.
Key Features
• 12.25–12.75 GHz Ku-band operation
• 0.8 dB low noise figure
• 57 dB high conversion gain
• ±10 ppm frequency stability
• 950–1450 MHz IF output
• IP67 weatherproof housing
NJR2845CHN
- Type
- Single LNBs
- Frequency Band
- Ku-Band
- Frequency Range
- 12.25 – 12.75 GHz
- Output Band
- 950–1450 MHz
- LO Frequency
- 11.30 GHz
- LO Stability
- ±100 kHz
- Noise Figure
- 0.8 dB
- Typical Gain
- 57 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- N Type 50 Ohm
