SMW Ka LNB 17.30-22.30 GHz 1 Band
• Auto Switch between External or Internal reference
• High P1dB and IP3
• Excellent Phase noise meets all profiles of DVB-S2X.
• Customized LO as option
• Wide operating temperature range
• Alarm and Monitoring & Control as option
• Available band / LO Frequency / Output Frequency:
17.30–18.30 GHz / 16.35 GHz / 950–1950 MHz
17.70–18.70 GHz / 16.75 GHz / 950–1950 MHz
18.20–19.20 GHz / 17.20 GHz / 1000–2000 MHz
18.20–19.20 GHz / 17.25 GHz / 950–1950 MHz
19.20–20.20 GHz / 18.20 GHz / 1000–2000 MHz
19.20–20.20 GHz / 18.25 GHz / 950–1950 MHz
19.70–20.20 GHz / 18.75 GHz / 950–1450 MHz
20.20–21.20 GHz / 19.20 GHz / 1000–2000 MHz
20.20–21.20 GHz / 19.25 GHz / 950–1950 MHz
21.20–22.20 GHz / 20.20 GHz / 1000–2000 MHz
21.20–22.20 GHz / 20.25 GHz / 950–1950 MHz
Security policy
Delivery policy
Return policy

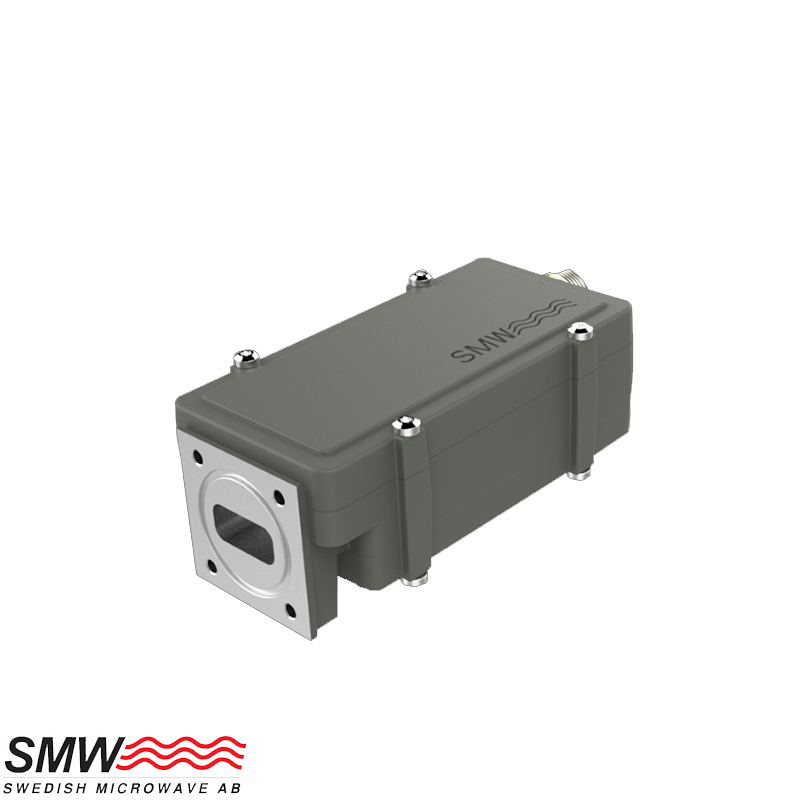

SMW Ka LNB 17.30 – 22.30 GHz 1-Band PLL LNB
The SMW Ka LNB 17.30 – 22.30 GHz 1-Band PLL LNB is engineered for precision reception of a single Ka-band sub-band within 17.3 – 22.3 GHz. It features auto-switching between internal and external 10 MHz references, excellent phase-noise performance that meets DVB-S2X standards, and optional RS-485 M&C for uplink monitoring or network control.
Input Frequency: 17.30 – 22.30 GHz (band-selectable models)
Local Oscillators: 16.35 – 20.25 GHz (typ., configurable LO options)
Output Frequency: 950 – 2000 MHz (custom IF up to 2150 MHz available)
Noise Figure: typ. 1.3 – 1.5 dB (increases with frequency)
Gain: typ. 60 dB (min. 55 dB); flatness ±1.5 dB max.
Phase Noise: –35 dBc/Hz @ 10 Hz; –65 @ 100 Hz; –80 @ 1 kHz; –95 @ 100 kHz; –112 @ 1 MHz
LO Reference: Auto External 10 MHz (–10 to +10 dBm) / Internal ±2.5 ppm (–40 to +80 °C)
Output P1dB: +15 dBm min Output IP3: +25 dBm min
Input Connector: PBR220 / WR-42 waveguide
Output Connector: N-female (50 Ω), SMA-female (50 Ω), or F-female (75 Ω)
Power Supply: +11 to +26 V DC, 5 W max (via output or separate SMA)
Options: RS-485 (Modbus RTU) M&C with Sum Alarm, Low-loss isolator (VSWR 1.35:1 max), custom LOs, extended IF range, pressurizable enclosure
Dimensions: 127 × 56 × 46 mm Weight: 354 g
Operating Temperature: –40 to +80 °C MTBF: > 690 000 hours
Country of Origin: Sweden
SMW Ka LNB 17.30-22.30 GHz 1 Band
- Type
- Single LNBs
- Frequency Band
- Ka-Band
- Frequency Range
- 17.30 – 22.30 GHz
- Number of Bands
- Single-Band
- Sub-Band
- Band 1: 19.7–20.2 GHz
- Sub-Band
- Band 1: 21.2–22.2 GHz
- Sub-Band
- Band 1: 20.2–21.2 GHz
- Sub-Band
- Band 1: 19.2–20.2 GHz
- Sub-Band
- Band 1: 18.2–19.2 GHz
- Sub-Band
- Band 1: 17.7–18.7 GHz
- Sub-Band
- Band 1: 17.3–18.3 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 1: 1000 – 2000 MHz
- Output Band
- Band 1: 950 – 1450 MHz
- LO Frequency
- 19.25 GHz
- LO Frequency
- 17.25 GHz
- LO Frequency
- 18.25 GHz
- LO Frequency
- 20.25 GHz
- LO Frequency
- 19.20 GHz
- LO Frequency
- 16.35 GHz
- LO Frequency
- 16.75 GHz
- LO Frequency
- 17.20 GHz
- LO Frequency
- 18.20 GHz
- LO Frequency
- 18.75 GHz
- LO Frequency
- 20.20 GHz
- LO Stability
- ±25 kHz (Auto-reference)
- Noise Figure
- 1.3 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
- Output Connector
- SMA Type 50 Ohm
