SMW Ka LNB 17.70-20.20 GHz SES O3b mPower 3 Band

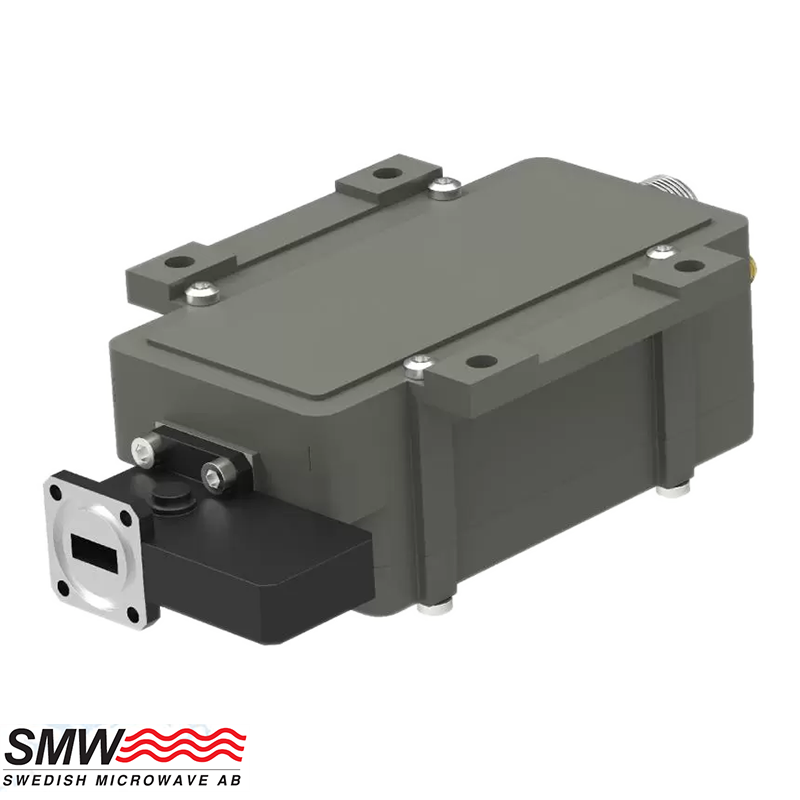

SMW Ka-Band 17.70–20.20 GHz 3-Band PLL LNB (SES O3b mPOWER Certified)

The SMW Ka-Band 3-Band PLL LNB (model KA-AOPXXXXX-152A-XX-33-SE) is a professional-grade unit certified by SES O3b mPOWER for use across the 17.70–20.20 GHz Ka downlink range. It offers three switchable sub-bands with precise voltage/tone control, auto external/internal 10 MHz reference, and built-in waveguide isolator. Designed for VSAT and gateway applications, this LNB ensures excellent linearity, stability, and low noise for high-throughput Ka-band networks.

Input Frequency:

Band 1: 17.70–18.70 GHz | Band 2: 18.45–19.45 GHz | Band 3: 19.20–20.20 GHz
Local Oscillator: 16.75 / 17.50 / 18.25 GHz
Output Frequency: 950–1950 MHz (per band)
Band Switching: 13 V (Band 1), 18 V (Band 2), 18 V + 22 kHz (Band 3)
Noise Figure: 1.5 / 1.5 / 1.6 dB max
Gain: typ. 60 dB (min. 55 dB); flatness ±2 dB per band
Phase Noise: –33 dBc/Hz @ 10 Hz; –63 @ 100 Hz; –73 @ 1 kHz; –83 @ 10 kHz; –93 @ 100 kHz
Image Rejection: ≥ 40 / 40 / 35 dB
LO Reference: Auto-switch external/internal 10 MHz, ±1.5 ppm internal
Output P1dB: +15 dBm min  Output IP3: +25 dBm min
Input Connector: PBR220 / WR-42 waveguide (pressurizable to 0.1 bar)
Output Connector: N-type, 50 Ω
Power Supply: +13 to +18 V DC, ≤5 W
Environmental: –40 to +80 °C operation; –40 to +176 °F storage
Dimensions: 153 × 80 × 46 mm (incl. isolator)  Weight: 425 g
Certifications: SES O3b mPOWER Approved, CE & RoHS Compliant
Country of Origin: Sweden
