SMW X LNB 7.90-8.50 GHz 1 Band | Gen 2

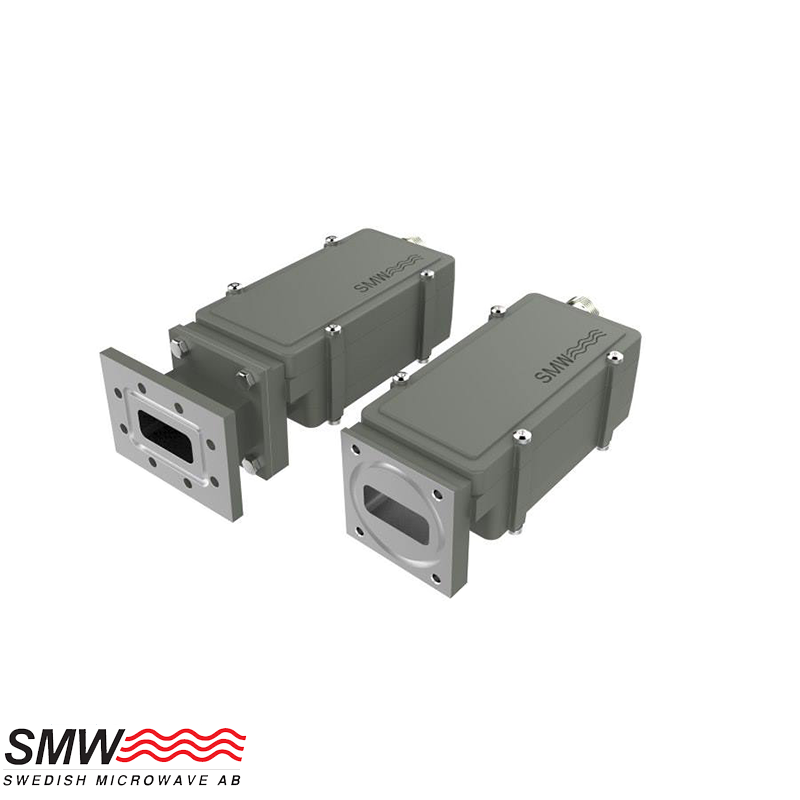

SMW X LNB 7.90–8.50 GHz 1-Band PLL LNB

The SMW X LNB 7.90–8.50 GHz 1-Band PLL LNB is a precision low-noise downconverter engineered for X-band SATCOM and radar applications. It combines exceptional phase-noise performance with external 10 / 100 MHz reference (with automatic fallback to internal ±25 ppm), RS-485 Modbus RTU monitoring, and configurable alarms for LO lock, LNA, and voltage conditions.

Input Frequency: 7.90 – 8.50 GHz
Local Oscillator: 6.95 GHz
Output Frequency: 950 – 1550 MHz
Noise Figure: typ. 0.60 dB (42 K), max 0.69 dB (49 K) @ 23 °C
Gain: typ. 60 dB (±0.1 dB / 24 h), flatness ±0.4 dB (30 MHz) / ±2 dB (full band)
Phase Noise: –45 @ 10 Hz • –75 @ 100 Hz • –95 @ 1 kHz • –100 @ 10 kHz • –105 @ 100 kHz • –122 @ >1 MHz
Image Rejection: ≥ 35 dB Group Delay: ± 1 ns max
Output P1dB: ≥ 15 dBm Output IP3: ≥ 26 dBm
Input VSWR: 1.5 : 1 max Output VSWR: 1.5 : 1 max
Reference: External 10 / 100 MHz (+5 to +10 dBm) with fallback to internal ±25 ppm
Input Connector: WR-112 / R84 flange (PBR-84), pressurizable 0.1 bar max
Output Connector: N-f (50 Ω), optional SMA-f (50 Ω)
Power Supply: +12 to +28 V DC (3 W typ.)
M&C Interface: RS-485 (Modbus RTU) with sum alarm (LNA fail, LO lock, voltage, signal status)
Dimensions: 135 × 56 × 51 mm (N); 128 × 56 × 51 mm (SMA)
Weight: 381 g (N) / 375 g (SMA)
Operating Temperature: –40 to +80 °C MTBF: > 690 000 h (Ground Fixed)
Country of Origin: Sweden
