CPI TLNB7500AS.0003

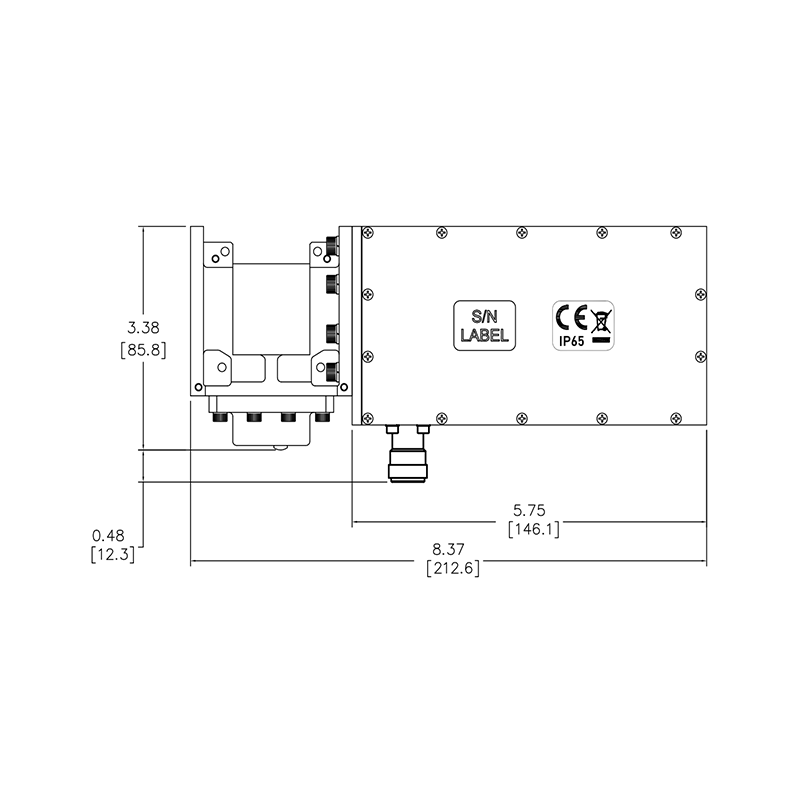

CPI TLNB7500AS.0003 X-Band Low Noise Block Converter is engineered for high-performance SATCOM receive systems. Operating from 7.25 to 7.75 GHz input and delivering a 950 to 1450 MHz IF output, it features low noise temperature (typ. 45 K), integrated HEMT/GaAs FET design, and phase-locked LO with internal reference fallback. This compact, rugged LNB offers exceptional gain stability, low spurious emissions, and excellent phase noise performance, making it ideal for both fixed and mobile terminals.

Key Features:

Input Frequency: 7.25 - 7.75 GHz
IF Output: 950 - 1450 MHz, non-inverted
LO Frequency: 6.30 GHz
Noise Temp: 45 K typ., 50 K max
Gain: 63 dB typ.
LO Phase Noise: -102 dBc/Hz @ 1 MHz (ext. ref.)
Input VSWR: 1.25:1 max
Power: +12 to +22 VDC, 450 mA max
CPR112G input flange, Type-N output
Operating Temp: -40 to +70°C
Internal/external 10 MHz reference auto-switching
