CPI BRK1100.1134 1:1 Ku-Band Redundant LNB System

CPI BRK1100.1134 1:1 Ku-Band Redundant LNB System

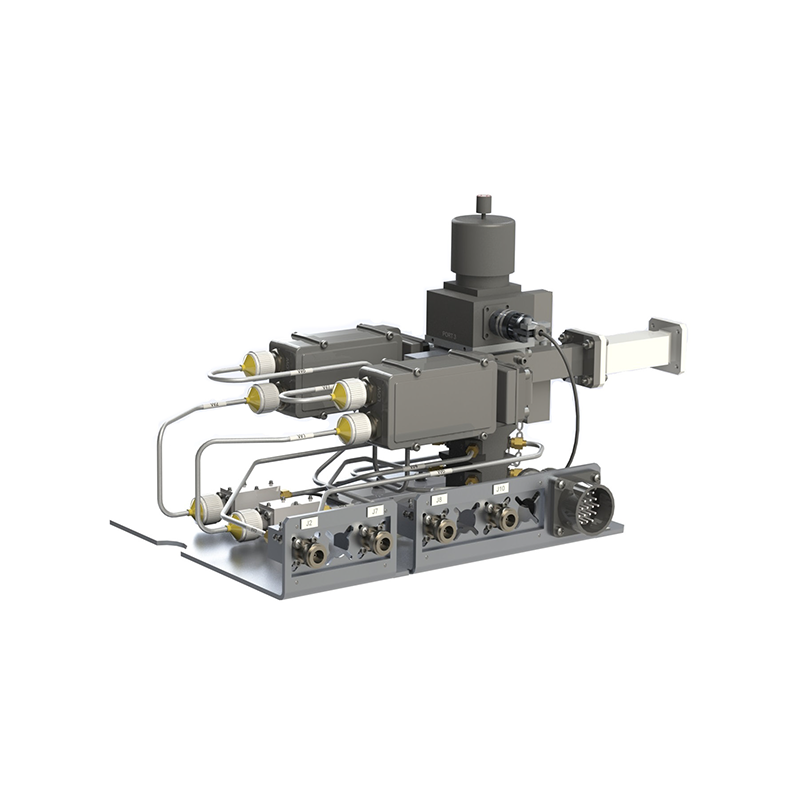

The CPI BRK1100.1134 is a 1:1 Ku-band redundant LNB system designed to minimize receiver downtime by automatically switching from the primary LNB to a dedicated standby LNB when a failure is detected. Using dual-output PLL LNBs, the system simultaneously provides low-band and high-band outputs for full 10.70–12.75 GHz Ku-band coverage. It includes an outdoor antenna-hub plate assembly, an indoor redundancy controller and an interconnecting control cable. Compatible Swedish Microwave dual-output PLL LNBs are ordered separately.

System Configuration: 1:1 redundancy
LNB Configuration: One primary LNB and one standby LNB
Input Frequency Range: 10.70–12.75 GHz
Low-Band Input Frequency Range: 10.70–11.70 GHz
High-Band Input Frequency Range: 11.70–12.75 GHz
Low-Band Output Frequency Range: 950–1950 MHz
High-Band Output Frequency Range: 1100–2150 MHz
Low-Band Local Oscillator Frequency: 9.75 GHz
High-Band Local Oscillator Frequency: 10.60 GHz
System Noise Temperature: 69 K typ. at +23°C
Gain: 55 dB typ.
Gain Flatness: ±0.5 dB per 30 MHz typ.
Output P1dB: +7 dBm typ.
Output OIP3: +17 dBm typ.
Frequency Stability: ±10 kHz from -40°C to +60°C
Input VSWR: 2.30:1 typ.
Output VSWR: 2.00:1 typ.
Maximum Input Power: 0 dBm max. without damage
RF Input Connector: WR-75 waveguide flange
RF Output Connectors: Type N female, 50 ohms
Offline Input Connector: Type N female, 50 ohms
Offline Output Connectors: Type N female, 50 ohms
Automatic Switchover Time: 100 ms max.
LNB Power Output: +14.3 to +15.0 VDC, 700 mA max.
Network Interface: 10/100Base-T Ethernet via RJ-45
Remote M&C: SNMP v1, v2c and v3; RS-232, RS-422, RS-485 and parallel I/O
Controller Power: 100–135 or 180–240 VAC, 47–63 Hz
Controller Power Supplies: Dual redundant supplies with dual AC inputs
Plate Operating Temperature: -40°C to +60°C
Plate Assembly Dimensions: 11.67 × 9.00 × 8.42 in.
Plate Assembly Weight: 12 lb. typ.
Compliance: CE certified, RoHS compliant and EAR99

Key Features:

• Automatic switching to the standby LNB upon primary-unit failure

• Simultaneous low-band and high-band L-band outputs

• Full 10.70–12.75 GHz Ku-band input coverage

• Compatible with Swedish Microwave dual-output PLL LNBs

• ±10 kHz frequency stability

• Outdoor antenna-hub plate assembly

• High-quality dual waveguide and coaxial RF switches

• Manual or automatic operating modes

• Manual RF-switch override

• LNB current and external-alarm monitoring

• User-selectable current tolerance window from ±5% to ±25%

• Dual redundant controller power supplies and AC inputs

• Front-panel LNB status and RF-switch indicators

• Optional transmit-reject filter

• Optional input crossguide coupler

• Optional output coaxial couplers

• Optional input isolator

• Optional terminated offline input and outputs

• Ethernet, serial and parallel remote control

• Audible fault alarm

• Standard control cables from 100 to 250 ft.

• Special-order control cables available up to 500 ft.

• Optional remote control panel for operation up to 4,000 ft. away
