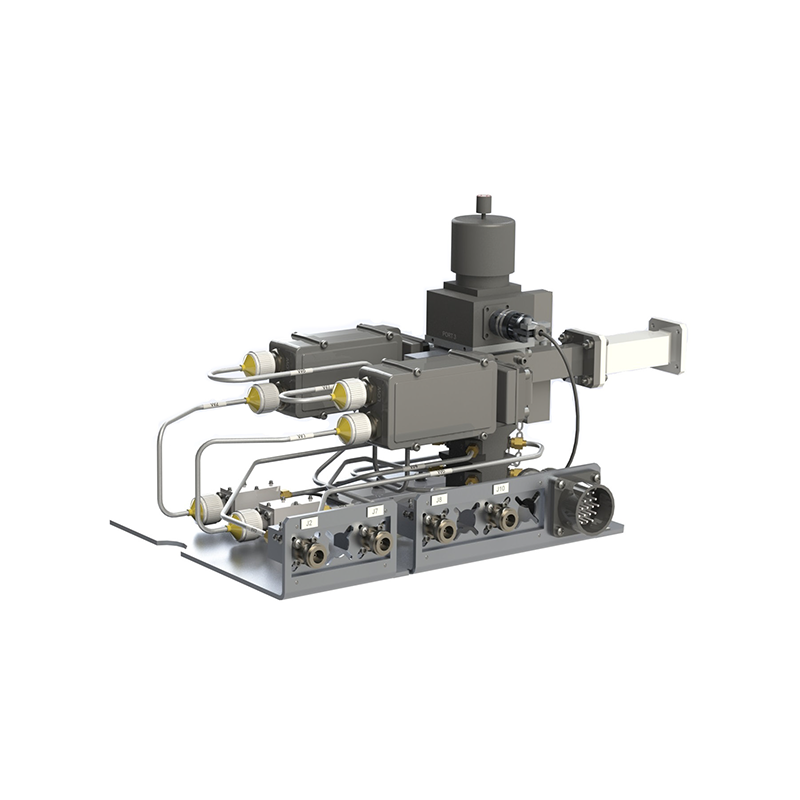

CPI BRK1100.1134 Ku-Band 1:1 Redundant LNB System

The CPI BRK1100.1134 1:1 Ku-Band Redundant LNB System ensures uninterrupted satellite signal reception and full Ku-band coverage using dual simultaneous low and high band output LNBs. Designed for robust failover and continuous monitoring, it includes WR75 input flanges, coaxial IF outputs (950–2150 MHz), and an indoor rack-mount controller with SNMP, Ethernet, serial, and parallel interfaces. Optional transmit reject filters enhance signal integrity in congested environments.

Key Features:

Full Ku-band support: 10.7–12.75 GHz RX, 950–2150 MHz IF

Dual-output PLL LNBs with low/high band operation

55 dB typ. gain, 69 K typ. noise temperature

Phase noise: –98 dBc/Hz @ 100 kHz

Redundant indoor controller with SNMP (v1/v2c/v3), Ethernet, and manual override

Optional TRF (Transmit Reject Filter) & offline monitor ports

CE marked & RoHS compliant

CPI BRK1100.1134
Band
Ku Band
Component Type
LNB
Redundancy
1:1
