CPI BRK1200.1136 1:2 Ku-Band Redundant LNB System

CPI BRK1200.1136 1:2 Ku-Band Redundant LNB System

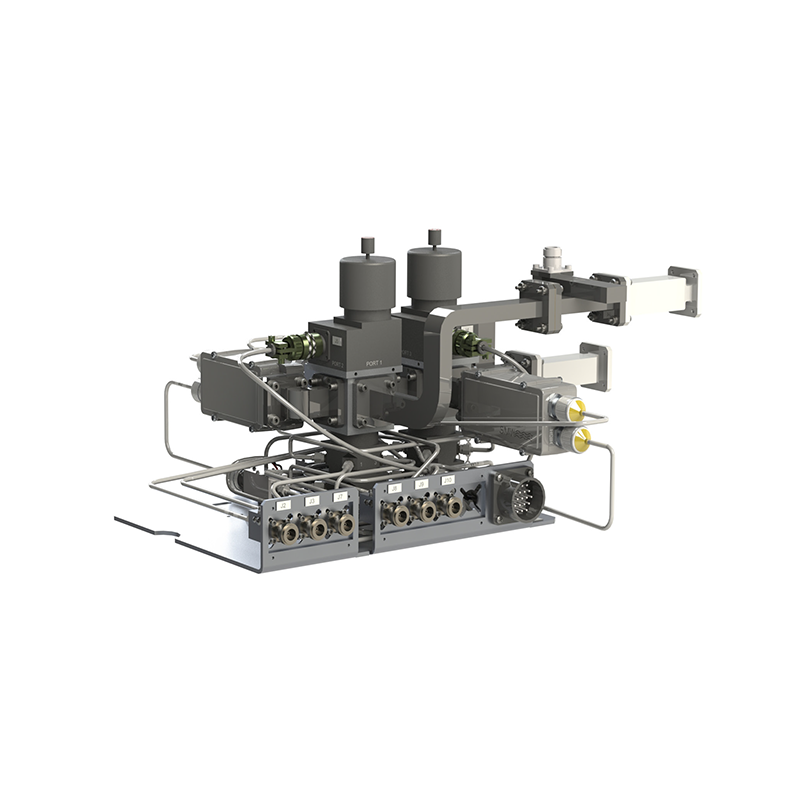

The CPI BRK1200.1136 is a 1:2 Ku-band redundant LNB system that protects two independent receiver or polarization paths with one shared standby LNB. If either primary LNB fails, the controller automatically transfers the affected RF path to the standby unit. Dual-output PLL LNBs provide simultaneous low- and high-band outputs for full 10.70–12.75 GHz Ku-band coverage. The system includes an outdoor antenna-hub plate assembly, an indoor redundancy controller and an interconnecting control cable. Compatible Swedish Microwave dual-output PLL LNBs are ordered separately.

System Configuration: 1:2 redundancy
LNB Configuration: Two primary LNBs and one shared standby LNB
RF Paths: Two independent receiver or polarization paths
Input Frequency Range: 10.70–12.75 GHz
Low-Band Input Frequency Range: 10.70–11.70 GHz
High-Band Input Frequency Range: 11.70–12.75 GHz
Low-Band Output Frequency Range: 950–1950 MHz
High-Band Output Frequency Range: 1100–2150 MHz
Low-Band Local Oscillator Frequency: 9.75 GHz
High-Band Local Oscillator Frequency: 10.60 GHz
System Noise Temperature: 69 K typ. for Pol. 1; 78 K typ. for Pol. 2 at +23°C
Gain: 55 dB typ.
Gain Flatness: ±0.5 dB per 30 MHz typ.
Output P1dB: +7 dBm typ.
Output OIP3: +17 dBm typ.
Frequency Stability: ±10 kHz from -40°C to +60°C
Input VSWR: 2.30:1 typ.
Output VSWR: 2.00:1 typ.
Maximum Input Power: 0 dBm max. without damage
RF Input Connectors: WR-75 waveguide flanges
RF Output Connectors: Type N female, 50 ohms
Offline Input Connector: Type N female, 50 ohms
Offline Output Connectors: Type N female, 50 ohms
Automatic Switchover Time: 100 ms max.
LNB Power Outputs: +14.3 to +15.0 VDC, 700 mA max.
Network Interface: 10/100Base-T Ethernet via RJ-45
Remote M&C: SNMP v1, v2c and v3; RS-232, RS-422, RS-485 and parallel I/O
Controller Power: 100–135 or 180–240 VAC, 47–63 Hz
Controller Power Supplies: Dual redundant supplies with dual AC inputs
Plate Operating Temperature: -40°C to +60°C
Plate Assembly Dimensions: 11.17 × 9.00 × 8.43 in.
Compliance: CE certified, RoHS compliant and EAR99

Key Features:

• One shared standby LNB protects two primary LNBs

• Automatic transfer of either failed RF path to the standby LNB

• Two independent receiver or polarization paths

• Full 10.70–12.75 GHz Ku-band input coverage

• Simultaneous low-band and high-band outputs

• Compatible with Swedish Microwave dual-output PLL LNBs

• ±10 kHz frequency stability

• Outdoor antenna-hub plate assembly

• High-quality dual waveguide and coaxial RF switches

• Manual or automatic operating modes

• Manual RF-switch override

• Independent standby-LNB selection for either RF path

• LNB current and external-alarm monitoring

• User-selectable current tolerance window from ±5% to ±25%

• Dual redundant controller power supplies and AC inputs

• Front-panel LNB status and RF-switch indicators

• Optional transmit-reject filters

• Optional input crossguide couplers

• Optional output coaxial couplers

• Optional terminated offline inputs and outputs

• Ethernet, serial and parallel remote control

• Audible fault alarm

• Standard control cables from 100 to 250 ft.

• Special-order control cables available up to 500 ft.

• Optional remote control panel for operation up to 4,000 ft. away
