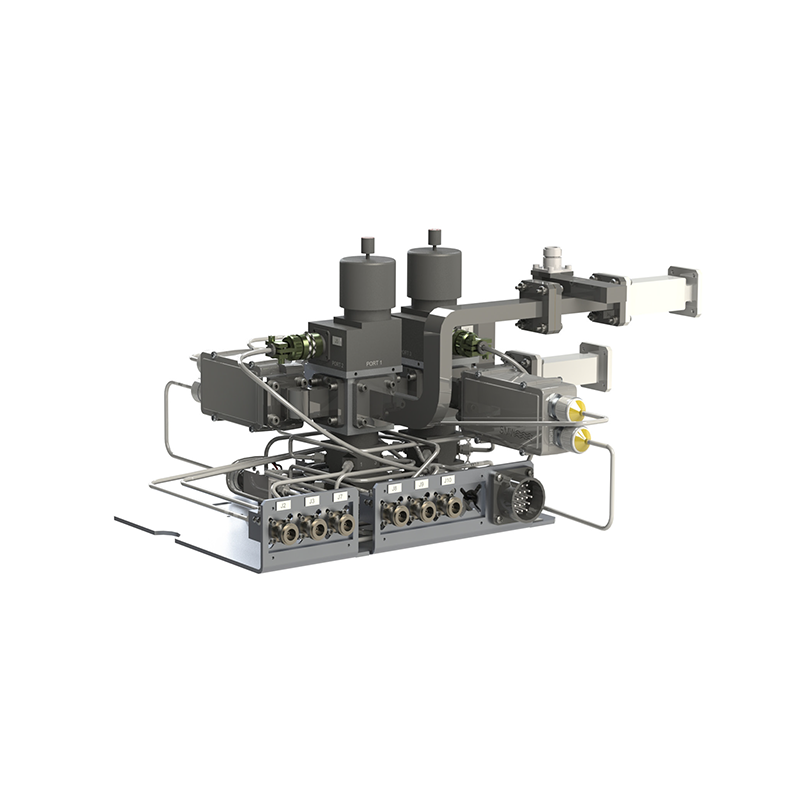

CPI BRK1200.1136 Ku-Band 1:2 Redundant LNB System

The 1:2 Ku-Band Redundant LNB System enhances system resilience with dual backup LNBs and automatic fault detection. Engineered for full-band Ku-Band reception, it utilizes dual simultaneous low and high band output PLL LNBs to ensure consistent signal integrity across all satellite frequency ranges. Integrated controller and waveguide switch enable rapid failover in demanding environments.

Key Features:

1:2 redundancy with built-in controller

Full Ku-Band coverage:
Low Band: 10.70–11.70 GHz / 950–1950 MHz
High Band: 11.70–12.75 GHz / 1100–2150 MHz
Dual simultaneous low & high band outputs ensure full Ku-Band reception
Local Oscillator: 9.75 GHz (Low), 10.60 GHz (High)
Gain: typ. 55 dB; P1 dB: +7 dBm; OIP3: +17 dBm
Auto/manual switchover with 100 ms response time
Front panel, serial, and Ethernet control
Remote control panel support up to 4000 ft away

CPI BRK1200.1136
Band
Ku Band
Component Type
LNB
Redundancy
1:2
