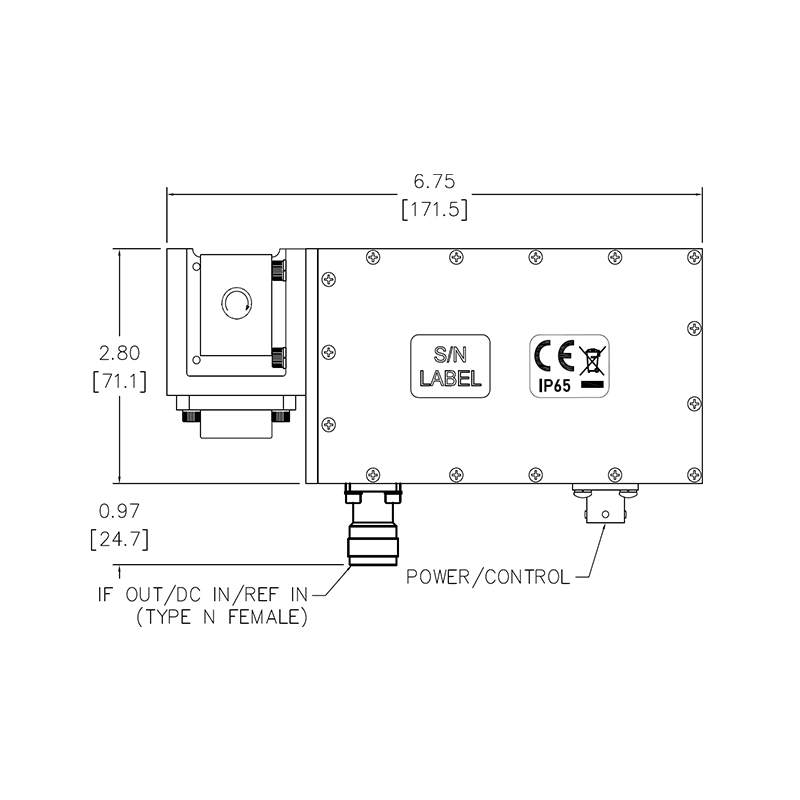

CPI TLNB12000X.0011 Ku-Band Band-Switching LNB

The CPI TLNB12000X.0011 is a high-performance Ku-Band Low Noise Block Converter offering full-band coverage (10.7–12.75 GHz) via a band-switching architecture. Engineered for fixed and transportable satellite earth stations, this model ensures superior reliability with a low noise figure, high gain, and excellent phase noise performance. Designed with state-of-the-art HEMT/GaAs FET technology, it is ideal for demanding receiver applications.

Input Frequency: 10.7–12.75 GHz (three switchable sub-bands)

Output Frequency: 950–1950 MHz (non-inverted)

Gain: typ. 63 dB (min. 60 dB)

Noise Temperature: typ. 65 K, max. 75 K @ 23°C

LO Frequencies: 9.75, 10.75, 11.25 GHz (band switchable)

VSWR: Input 1.25:1 max, Output 1.50:1 max

Phase Noise: -100 dBc/Hz @ 1 MHz offset

Power Supply: +12 to +22 VDC, 500 mA max

Temperature Range: -40°C to +70°C

Input Interface: WR75 flange
