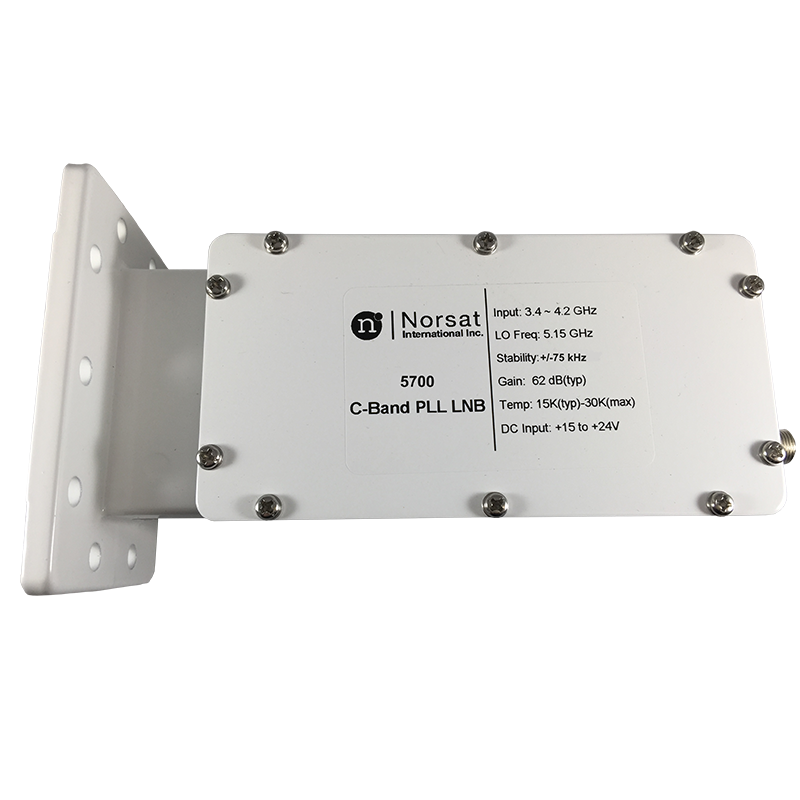

Norsat 5700N – C-Band Single-Band PLL LNB, N-Type (50Ω)
$220.00
• Input Band: 3.40–4.20 GHz
• LO Stability: ±75 kHz
• Noise Temperature: 15K
• Output Connector: N-type, 50 Ω
Security policy
Delivery policy
Return policy
Norsat 5700N Single-Band C-Band PLL LNB
The Norsat 5700N is a single-band C-Band PLL LNB with ±75 kHz LO stability and a typ. 15K noise figure, designed for stable satellite downlinking from 3.40 to 4.20 GHz. It features a 75 Ohm F-type output, CPR229G waveguide input, and IP67-rated protection for dependable operation in harsh environments.
Frequency Band: 3.40–4.20 GHz
Output Frequency: 950–1750 MHz
Local Oscillator: 5.15 GHz
LO Stability: ±75 kHz
Noise Temperature: typ. 15K, max. 30K
Gain: typ. 62 dB (55–70 dB range), ≤5 dB p-p flatness
Output Connector: N-Type, 50 Ohm
Input: CPR229G waveguide grooved
Power: +12 to +24 VDC, 250 mA max
Environmental: -40°C to +60°C, IP67
Dimensions: 179 x 99 x 70 mm; Weight: 0.575 kg
Made in Republic of Korea; ECCN: EAR99
5700N
- Frequency Band
- C-Band
- Frequency Range
- 3.40 – 4.20 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1750 MHz
- LO Frequency
- 5.15 GHz
- LO Stability
- ±75 kHz
- Noise Figure
- 0.22 dB
- Typical Gain
- 62 dB
- Input Interface
- CPR 229G Waveguide Grooved
- Output Connector
- N Type 50 Ohm
