Norsat 5500IN – C-Band Single-Band PLL LNB, N-Type (50Ω)
$264.00
• Input Band: 4.50–4.80 GHz
• LO Stability: ±50 kHz
• Noise Temperature: 15K
• Output Connector: N-type, 50 Ω
Security policy
Delivery policy
Return policy

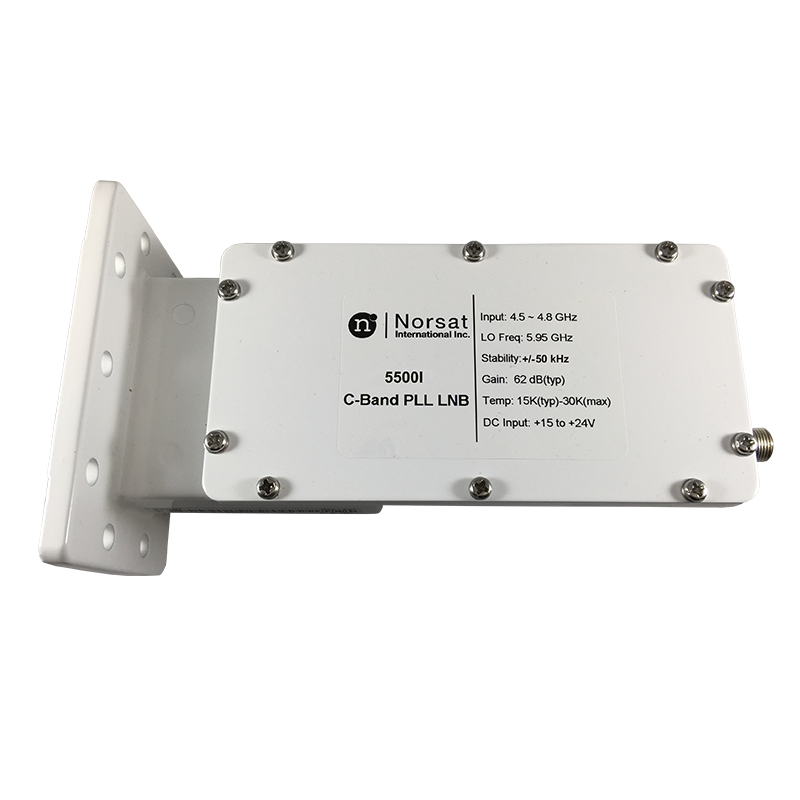

Norsat 5500IN Single-Band C-Band PLL LNB
The Norsat 5500IN is a single-band C-Band PLL LNB with ±50 kHz LO stability and a typ. 15K noise figure, engineered for precise reception from 4.50 to 4.80 GHz. Featuring a 50 Ohm N-type output and CPR229G waveguide input, it’s IP67-rated for robust operation in challenging SATCOM environments.
Frequency Band: 4.50–4.80 GHz
Output Frequency: 1150–1450 MHz
Local Oscillator: 5.95 GHz
LO Stability: ±50 kHz
Noise Temperature: typ. 15K, max. 30K
Gain: typ. 62 dB (55–70 dB range), ≤5 dB p-p flatness
Output Connector: N-Type, 50 Ohm
Input: CPR229G waveguide grooved
Power: +12 to +24 VDC, 250 mA max
Environmental: -40°C to +60°C, IP67
Dimensions: 179 x 99 x 70 mm; Weight: 0.575 kg
Made in Republic of Korea; ECCN: EAR99
5500IN
- Frequency Band
- C-Band
- Frequency Range
- 4.50 – 4.80 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 1150 – 1450 MHz
- LO Frequency
- 5.95 GHz
- LO Stability
- ±50 kHz
- Noise Figure
- 0.22 dB
- Typical Gain
- 62 dB
- Input Interface
- CPR 229G Waveguide Grooved
- Output Connector
- N Type 50 Ohm
Specific References
• Input Band: 4.50–4.80 GHz
• LO Stability: ±50 kHz
• Noise Temperature: 15K
• Output Connector: N-type, 50 Ω
