Norsat 5150IN – C-Band Single-Band PLL LNB, N-Type (50Ω)
$176.00
• Input Band: 4.50–4.80 GHz
• LO Stability: ±150 kHz
• Noise Temperature: 25K
• Output Connector: N-type, 50 Ω
Security policy
Delivery policy
Return policy

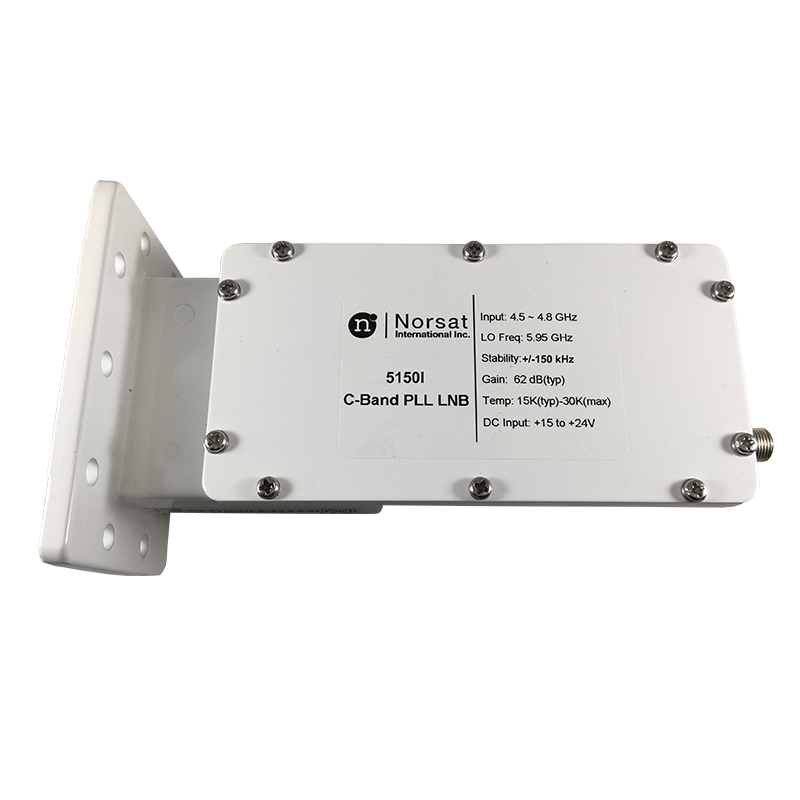

Norsat 5150IN Single-Band C-Band PLL LNB
The Norsat 5150IN is a single-band C-Band PLL LNB with ±150 kHz LO stability and a typ. 25K noise temperature, designed for precision downlinking from 4.50 to 4.80 GHz. It features a 50 Ohm N-type output, CPR229G waveguide input, and IP67-rated construction for reliable SATCOM performance in harsh conditions.
Frequency Band: 4.50–4.80 GHz
Output Frequency: 1150–1450 MHz
Local Oscillator: 5.95 GHz
LO Stability: ±150 kHz
Noise Temperature: typ. 25K, max. 30K
Gain: typ. 60 dB (55–70 dB range), ≤5 dB p-p flatness
Output Connector: N-Type, 50 Ohm
Input: CPR229G waveguide grooved
Power: +12 to +24 VDC, 250 mA max
Environmental: -40°C to +60°C, IP67
Dimensions: 179 x 99 x 70 mm; Weight: 0.575 kg
Made in Republic of Korea; ECCN: EAR99
5150IN
- Type
- Single LNBs
- Frequency Band
- C-Band
- Frequency Range
- 4.5 – 4.8 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 1150 – 1450 MHz
- LO Frequency
- 5.95 GHz
- LO Stability
- ±150 kHz
- Noise Figure
- 0.37 dB
- Typical Gain
- 60 dB
- Input Interface
- F-type, female (75 ohm)
- Output Connector
- N Type 50 Ohm
