Norsat 4208BN – Ku-Band Single-Band PLL LNB, N-Type (50Ω)

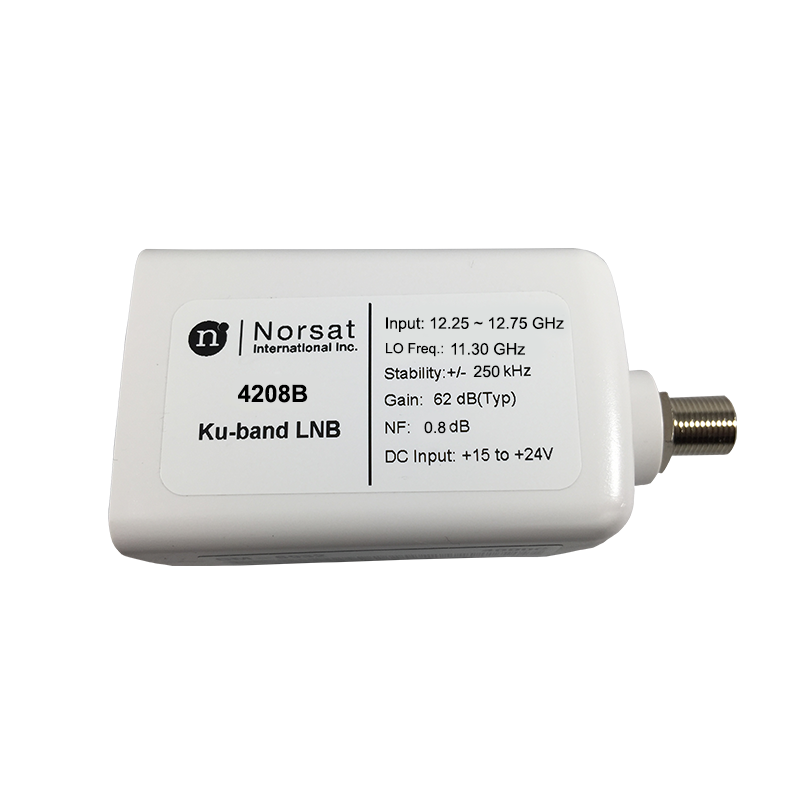

Norsat 4208BN Single-Band Ku-Band PLL LNB

The Norsat 4208BN is a single-band Ku-Band PLL LNB with ±250 kHz LO stability and a typ. 0.8 dB noise figure, engineered for reliable downlinking from 12.25 to 12.75 GHz. It features a 50 Ohm N-type output, WR-75 waveguide input, and IP67-rated protection for dependable SATCOM performance in all weather conditions.

Frequency Band: 12.25–12.75 GHz
Output Frequency: 950–1450 MHz
Local Oscillator: 11.30 GHz
LO Stability: ±250 kHz
Noise Figure: typ. 0.8 dB, max. 0.9 dB
Gain: typ. 60 dB (55–70 dB range), ≤4 dB p-p flatness
Output Connector: N-Type, 50 Ohm
Input: WR-75 waveguide grooved
Power: +15 to +24 VDC, 300 mA max
Environmental: -40°C to +60°C, IP67
Dimensions: 85 x 43 x 43 mm; Weight: 0.2 kg
Made in Republic of Korea; ECCN: EAR99
