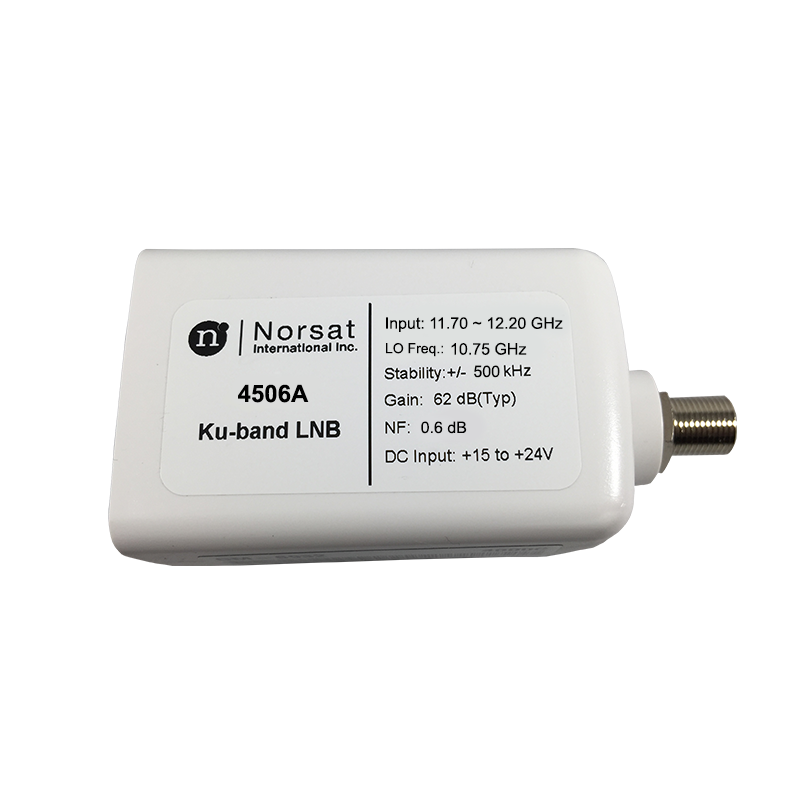

Norsat 4506AN – Ku-Band Single-Band DRO LNB, N-Type (50Ω)
$139.00
• Input Band: 11.70–12.20 GHz
• LO Stability: ±500 kHz
• Noise Figure: 0.6 dB
• Output Connector: F-type, 75 Ω
End of Life, replaced with 4507AN
Security policy
Delivery policy
Return policy
4506AN
- Frequency Band
- Ku-Band
- Frequency Range
- 11.70 – 12.20 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1450 MHz
- LO Frequency
- 10.75 GHz
- LO Stability
- ±500 kHz
- Noise Figure
- 0.6 dB
- Typical Gain
- 62 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- N Type 50 Ohm
Specific References
• Input Band: 11.70–12.20 GHz
• LO Stability: ±500 kHz
• Noise Figure: 0.6 dB
• Output Connector: F-type, 75 Ω
End of Life, replaced with 4507AN
