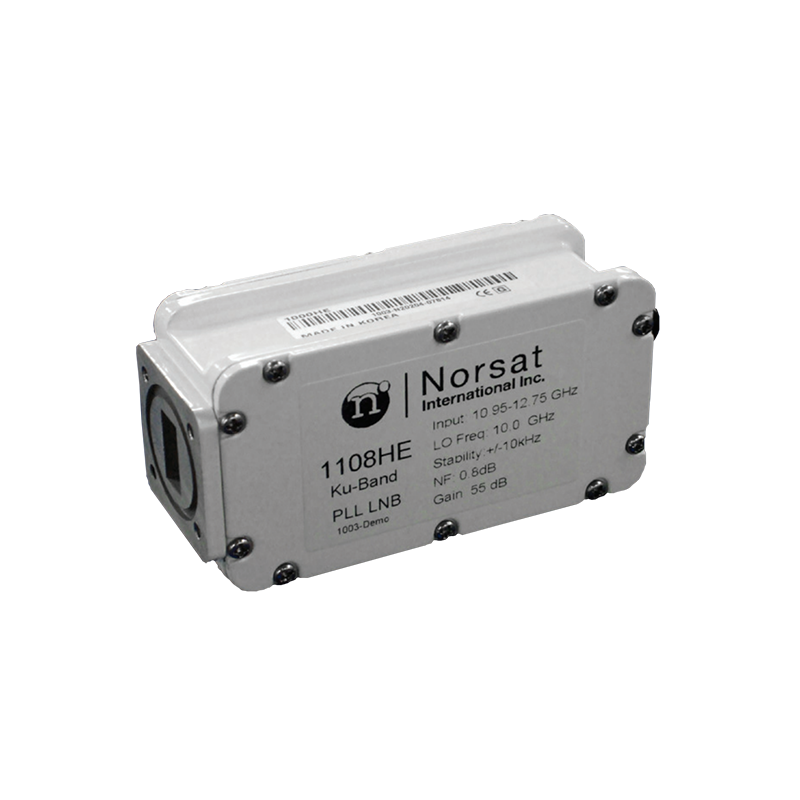

Norsat 1108HEN – Ku-Band Single-Band PLL LNB, N-Type (50Ω)
$1,130.00
• Input Band: 10.95–12.75 GHz
• LO Stability: ±10 kHz
• Noise Figure: 0.8 dB
• Output Connector: N-type, 50 Ω
Security policy
Delivery policy
Return policy
Norsat 1108HEN Single-Band Ku-Band PLL LNB
The Norsat 1108HEN is a single-band Ku-Band PLL LNB with ±10 kHz LO stability and typ. 0.8 dB noise figure, delivering reliable downlinking across 10.95 to 12.75 GHz. It features a 50 Ohm N-type output, WR-75 waveguide input, and IP67-rated housing for rugged SATCOM performance.
Frequency Band: 10.95–12.75 GHz
Output Frequency: 950–2750 MHz
Local Oscillator: 10.00 GHz
LO Stability: ±10 kHz
Noise Figure: typ. 0.8 dB, max. 1.0 dB
Gain: typ. 55 dB (50–65 dB range), ≤6 dB p-p flatness
Output Connector: N-Type, 50 Ohm
Input: WR-75 waveguide grooved
Power: +12 to +24 VDC, 350 mA max
Environmental: -40°C to +60°C, IP67
Dimensions: 130 x 60 x 42 mm; Weight: 0.4 kg
Made in Republic of Korea; ECCN: EAR99
1108HEN
- Frequency Band
- Ku-Band
- Frequency Range
- 10.95 – 12.75 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 2750 MHz
- LO Frequency
- 10.00 GHz
- LO Stability
- ±10 kHz
- Noise Figure
- 0.8 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- N Type 50 Ohm
Specific References
• Input Band: 10.95–12.75 GHz
• LO Stability: ±10 kHz
• Noise Figure: 0.8 dB
• Output Connector: N-type, 50 Ω
