Norsat HS1049BN – Ku-Band Single-Band PLL LNB, N-Type (50Ω)
$462.00
• Input Band: 12.25–12.75 GHz
• LO Stability: ±4 kHz
• Noise Figure: 0.9 dB
• Output Connector: N-type, 50 Ω
Security policy
Delivery policy
Return policy

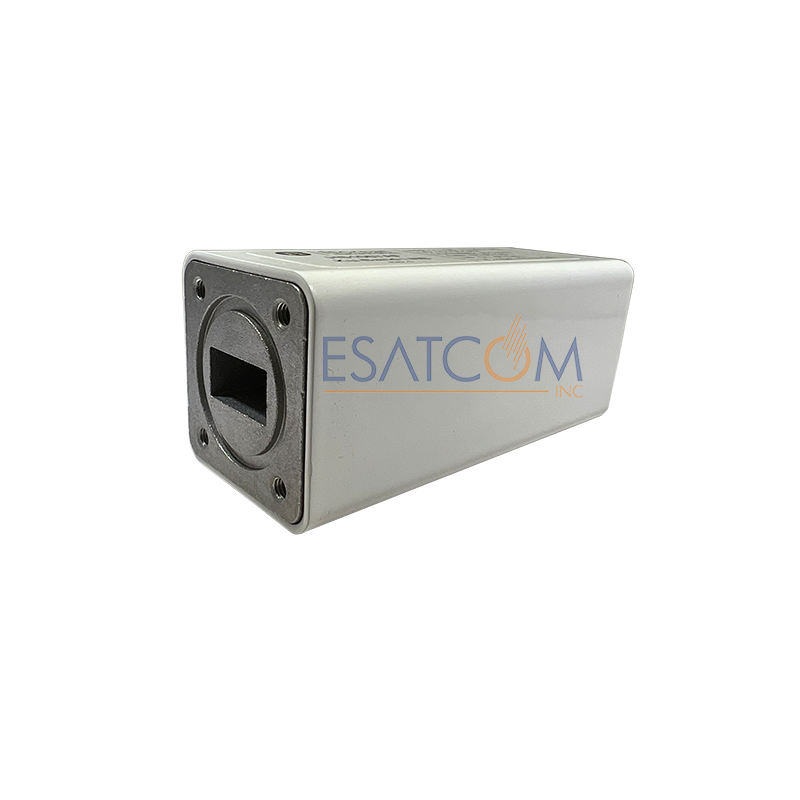

Norsat HS1049BN Single-Band Ku-Band PLL LNB
The Norsat HS1049BN is a high-stability Ku-Band PLL LNB designed for professional SATCOM systems. With ±4 kHz LO stability and a typ. 0.9 dB noise figure, it ensures precise and low-noise signal reception across 12.25–12.75 GHz. Rugged and reliable, it comes with a 50 Ohm N-type connector and IP-rated housing for dependable field operation.
Frequency Band: 12.25–12.75 GHz
Output Frequency: 950–1450 MHz
Local Oscillator: 11.30 GHz
LO Stability: ±4 kHz
Noise Figure: typ. 0.9 dB, max. 1.0 dB
Gain: typ. 60 dB (55–65 dB range), ≤5 dB flatness
Output Connector: N-Type, 50 Ohm
Input: WR-75 waveguide grooved
Power: +12 to +24 VDC, 300 mA max
Environmental: -40°C to +60°C
Dimensions: 110 x 42 x 42 mm; Weight: 0.3 kg
Made in Republic of Korea; ECCN: EAR99
HS1049BN
- Frequency Band
- Ku-Band
- Frequency Range
- 12.25 – 12.75 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1450 MHz
- LO Frequency
- 11.30 GHz
- LO Stability
- ±4 kHz
- Noise Figure
- 0.9 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- N Type 50 Ohm
