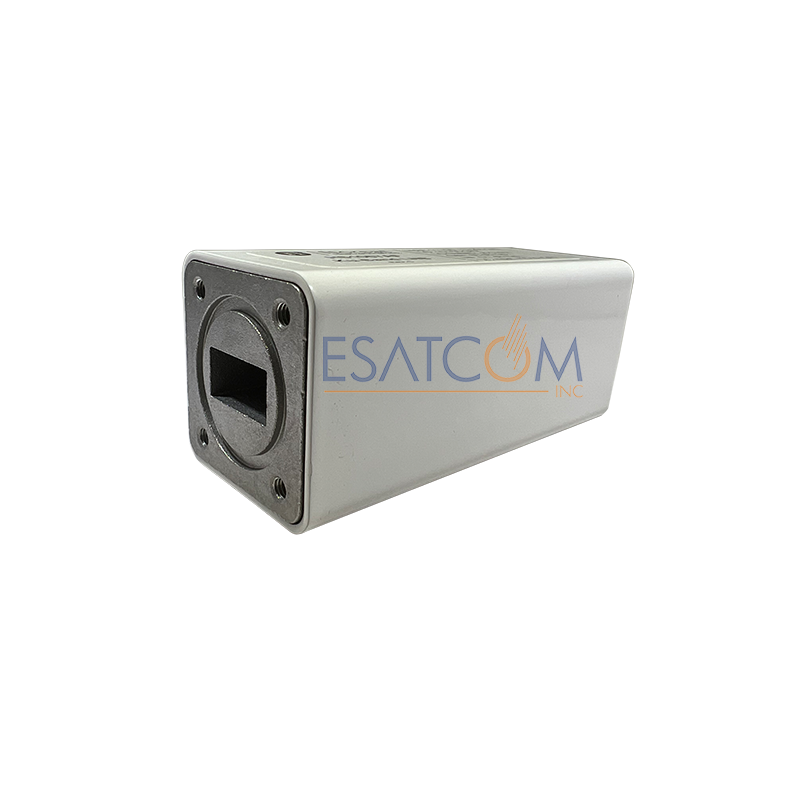

Norsat HS1029CN – Ku-Band Single-Band PLL LNB, N-Type (50Ω)

Norsat HS1029CN Single-Band Ku-Band PLL LNB

The Norsat HS1029CN is a high-stability Ku-Band PLL LNB designed for professional SATCOM systems. With ±2 kHz LO stability and a typ. 0.9 dB noise figure, it ensures precise and low-noise signal reception across 10.95–11.70 GHz. Rugged and reliable, it comes with a 50 Ohm N-type connector and IP-rated housing for dependable field operation.

Frequency Band: 10.95–11.70 GHz

Output Frequency: 950–1700 MHz
Local Oscillator: 10.0 GHz
LO Stability: ±2 kHz
Noise Figure: typ. 0.9 dB, max. 1.0 dB
Gain: typ. 60 dB (55–65 dB range), ≤5 dB flatness
Output Connector: N-Type, 50 Ohm
Input: WR-75 waveguide grooved
Power: +12 to +24 VDC, 300 mA max
Environmental: -40°C to +60°C
Dimensions: 110 x 42 x 42 mm; Weight: 0.3 kg
Made in Republic of Korea; ECCN: EAR99
