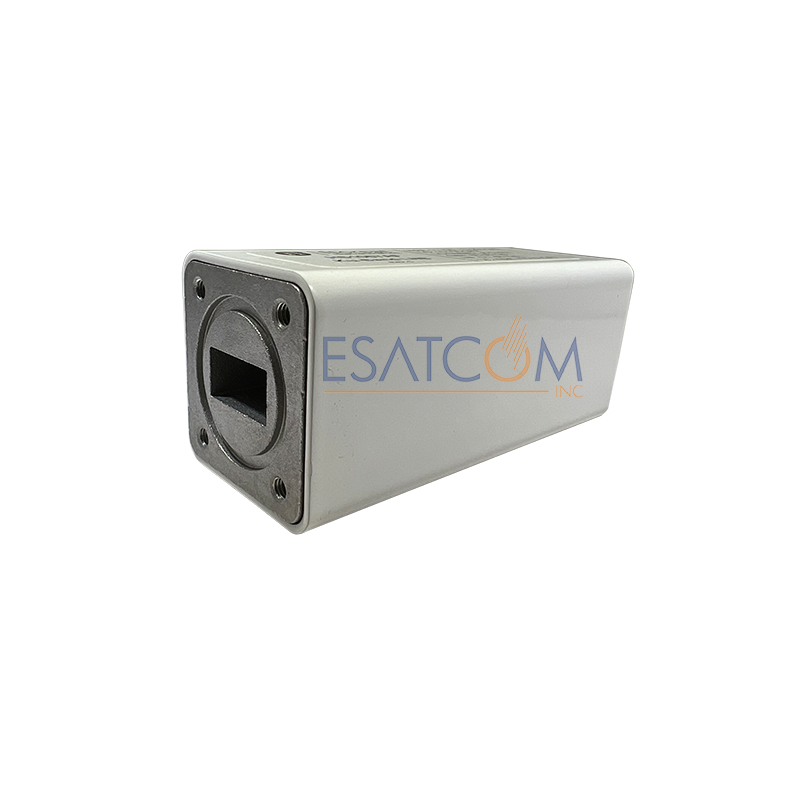

Norsat 1007XHCN – Ku-Band Single-Band External Reference PLL LNB, N-Type (50Ω)
$682.00
• Input Band: 10.95–11.70 GHz
• LO Reference: External 10 MHz
• Noise Figure: 0.7 dB
• Output Connector: N-type, 50 Ω
Security policy
Delivery policy
Return policy
Norsat 1007XHCN Single-Band Ku-Band External Reference LNB
The Norsat 1007XHCN is a single-band Ku-Band PLL LNB with 10 MHz external reference input, typ. 0.7 dB noise figure, and stable high gain. Covering 10.95–11.70 GHz with a 10.0 GHz LO, it ensures precise frequency stability and dependable SATCOM performance. It features a 50 Ohm N-type output and rugged WR-75 waveguide input.
Frequency Band: 10.95–11.70 GHz
Output Frequency: 950–1700 MHz
Local Oscillator: 10.0 GHz
LO Stability: External Reference (10 MHz, -10 to 0 dBm)
Noise Figure: typ. 0.7 dB, max. 0.8 dB
Gain: typ. 60 dB (55–65 dB range), ≤4 dB p-p flatness
Output Connector: N-Type, 50 Ohm
Input: WR-75 waveguide grooved
Power: +15 to +24 VDC, 300 mA max
Environmental: -40°C to +60°C
Dimensions: 110 x 42 x 42 mm; Weight: 0.3 kg
Made in Republic of Korea; ECCN: EAR99
1007XHCN
- Frequency Band
- Ku-Band
- Frequency Range
- 10.95 – 11.70 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1700 MHz
- LO Frequency
- 10.00 GHz
- LO Stability
- External Reference
- Noise Figure
- 0.7 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- N Type 50 Ohm
Specific References
• Input Band: 10.95–11.70 GHz
• LO Reference: External 10 MHz
• Noise Figure: 0.7 dB
• Output Connector: N-type, 50 Ω
