Norsat 9000HBN-2 – Ka-Band Single-Band PLL LNB, N-Type (50Ω)

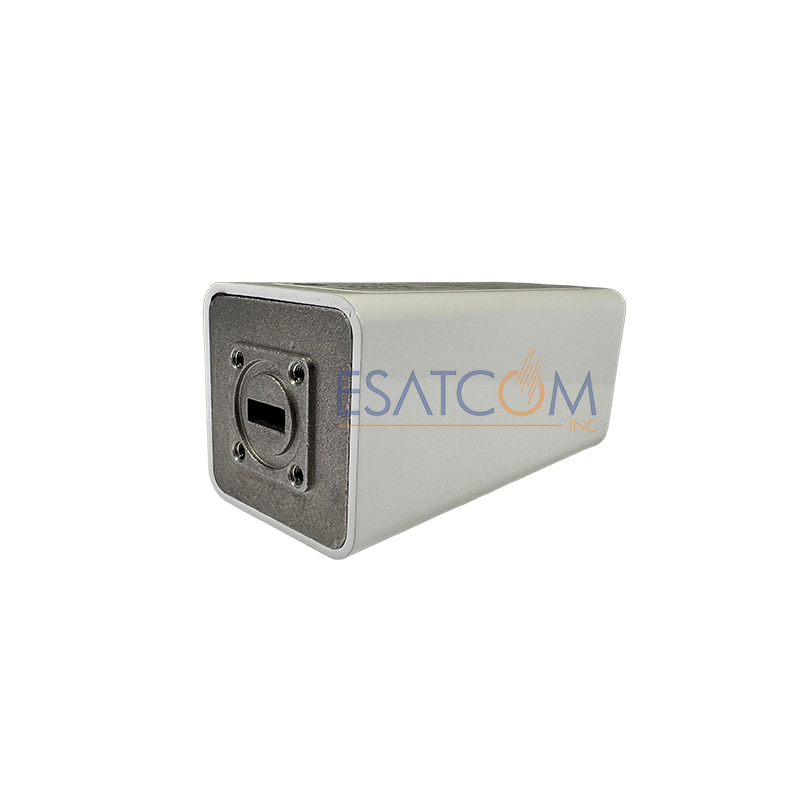

Norsat 9000HBN-2 Single-Band Ka-Band PLL LNB

The Norsat 9000HBN-2 is a single-band Ka-Band PLL LNB with ±60 kHz LO stability and a typ. 1.5 dB noise figure, designed for precision satellite reception in the 19.20–20.20 GHz band. Featuring a 50 Ohm N-type output, WR-42 waveguide input, and compact IP-rated housing, it ensures reliable SATCOM performance.

Frequency Band: 19.20–20.20 GHz
Output Frequency: 950–1950 MHz
Local Oscillator: 18.25 GHz
LO Stability: ±60 kHz
Noise Figure: typ. 1.5 dB, max. 1.8 dB
Gain: typ. 60 dB (50–65 dB range), ≤5 dB p-p flatness
Output Connector: N-Type, 50 Ohm
Input: WR-42 waveguide grooved
Power: +15 to +24 VDC, 300 mA max
Environmental: -40°C to +60°C
Dimensions: 111 x 42 x 42 mm; Weight: 0.35 kg
Made in Japan; ECCN: EAR99
