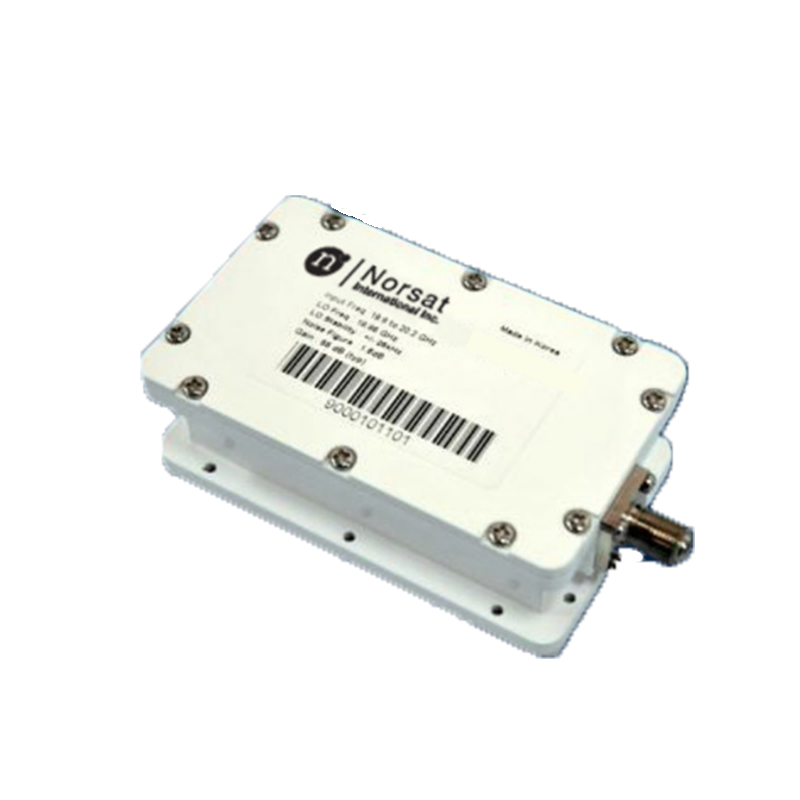

Norsat 9500HBC-3N – Ka-Band Dual-Band PLL LNB, N-Type (50Ω)
$2,811.00
Covers 19.20–21.20 GHz input range
Supports 2 sub-bands:
• Band 1: 19.20–20.20 GHz
• Band 2: 20.20–21.20 GHz
• LO Stability: ±50 kHz
• Output Connector: N-type, 50 Ω
Security policy
Delivery policy
Return policy
Norsat 9500HBC-3N Dual-Band Ka-Band PLL LNB
The Norsat 9500HBC-3N is a dual-band Ka-Band PLL LNB with ±50 kHz LO stability and typ. 1.3 dB noise figure, designed for precision SATCOM reception across 19.20–21.20 GHz. It offers dual onboard LOs, wide input coverage, and rugged IP67-rated construction for dependable operation.
Frequency Band 1: 19.20–20.20 GHz
Frequency Band 2: 20.20–21.20 GHz
Output Frequency: 950–1950 MHz (both bands)
Local Oscillators: 18.25 GHz / 19.25 GHz
LO Stability: ±50 kHz
Noise Figure: typ. 1.3 dB, max. 1.6 dB
Gain: typ. 58 dB (55–65 dB range), ≤5 dB flatness
Control: 13V / No Tone (Band 1), 18V / No Tone (Band 2)
Image Rejection: 40 dBc min
Output Connector: N-Type, 50 Ohm
Input: WR-42 waveguide
Power: +12 to +19 VDC, 350 mA max
Environmental: -40°C to +60°C, IP67
Dimensions: 133 x 70 x 39 mm; Weight: 0.5 kg
Made in Republic of Korea; ECCN: EAR99
9500HBC-3N
- Frequency Band
- Ka-Band
- Frequency Range
- 19.20 – 21.20 GHz
- Number of Bands
- 2-Band
- Sub-Band
- Band 1: 19.20 – 20.20 GHz
- Sub-Band
- Band 2: 20.20 – 21.20 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1950 MHz
- LO Frequency
- Multiple LO
- LO Stability
- ±50 kHz
- Noise Figure
- 1.3 dB
- Typical Gain
- 58 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- N Type 50 Ohm
Specific References
Covers 19.20–21.20 GHz input range
Supports 2 sub-bands:
• Band 1: 19.20–20.20 GHz
• Band 2: 20.20–21.20 GHz
• LO Stability: ±50 kHz
• Output Connector: N-type, 50 Ω
