Norsat XT1000N – X-Band Single-Band External Reference PLL LNB, N-Type (50Ω)

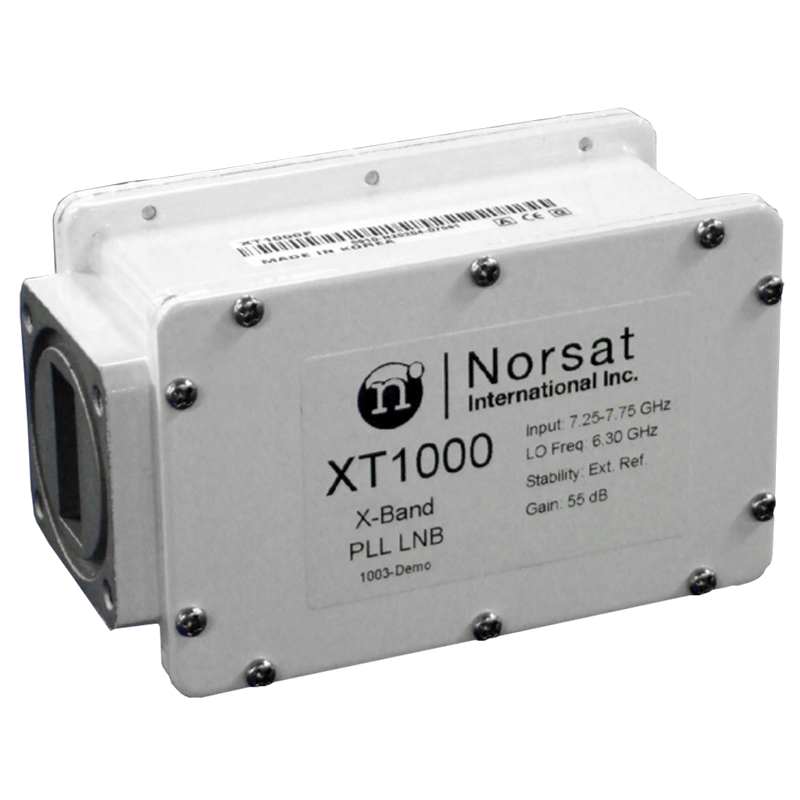

Norsat XT1000N Single-Band X-Band External Reference LNB

The Norsat XT1000N is a single-band X-Band PLL LNB requiring a 10 MHz external reference, designed for precision downlinking from 7.25–7.75 GHz. With a typ. 0.7 dB noise figure, rugged waterproof housing, and IP67 rating, it ensures reliable SATCOM performance in demanding environments.

Frequency Band: 7.25–7.75 GHz
Output Frequency: 950–1450 MHz
Local Oscillator: 6.30 GHz
LO Stability: External 10 MHz reference (-5 to +5 dBm)
Noise Figure: typ. 0.7 dB, max. 0.8 dB
Gain: typ. 55 dB (50–62 dB range), ≤4 dB p-p flatness
Input VSWR: 2.3:1 max
Output VSWR: 2.5:1 max
Output P1dB: +5 dBm min
Phase Noise: dependent on external reference
Output Connector: N-Type, 50 Ohm (waterproof)
Input: WR-112 waveguide grooved (waterproof)
Power: +12 to +24 VDC, 300 mA max
Environmental: -40°C to +60°C, 0–95% humidity, IP67
Dimensions: 137 x 70 x 59 mm; Weight: 0.6 kg
Made in Republic of Korea; ECCN: EAR99
