Norsat XT1000HN – X-Band Auto-Reference Single-Band PLL LNB, N-Type (50Ω)
$2,200.00
• Input Band: 7.25–7.75 GHz
• LO Stability: ±10 kHz (Auto-reference with external 10 MHz)
• Noise Figure: 0.7 dB
• Output Connector: N-type, 50 Ω
Security policy
Delivery policy
Return policy

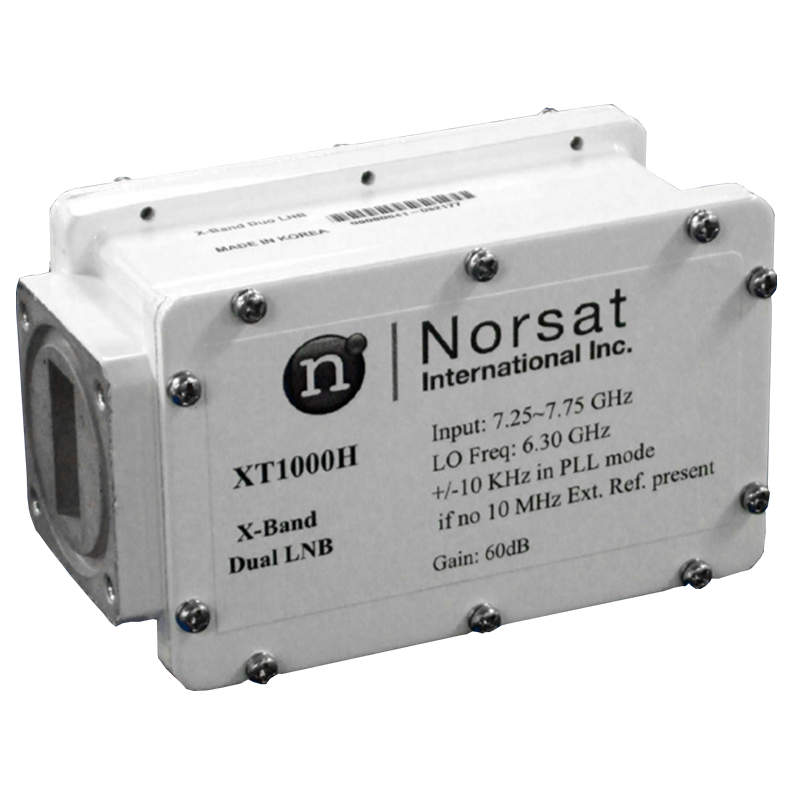

Norsat XT1000HN Single-Band X-Band Auto-Reference LNB
The Norsat XT1000HN is a single-band X-Band PLL LNB with auto-reference functionality, operating on a 10 MHz external reference but automatically switching to internal PLL if the reference is absent. Covering 7.25–7.75 GHz with a 6.30 GHz LO, it delivers a typ. 0.6 dB noise figure and rugged IP67-rated housing for reliable SATCOM operation.
Frequency Band: 7.25–7.75 GHz
Output Frequency: 950–1450 MHz
Local Oscillator: 6.30 GHz
LO Stability: ±10 kHz (Auto-reference with external 10 MHz ref)
Noise Figure: typ. 0.6 dB, max. 0.7 dB
Gain: typ. 60 dB (56–65 dB range), ≤4 dB p-p flatness
Input VSWR: 2.0:1 max
Output VSWR: 2.0:1 max
Output P1dB: +10 dBm min
Output Connector: N-Type, 50 Ohm (waterproof)
Input: WR-112 waveguide grooved (waterproof)
Power: +15 to +24 VDC, 270 mA max
Environmental: -40°C to +60°C, 0–95% humidity, IP67
Dimensions: 134 x 70 x 59 mm; Weight: 0.6 kg
Made in Republic of Korea; ECCN: EAR99
XT1000HN
- Frequency Band
- X-Band
- Frequency Range
- 7.25 – 7.75 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1450 MHz
- LO Frequency
- 6.30 GHz
- LO Stability
- ±10 kHz (Auto-reference)
- Noise Figure
- 0.6 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-112 Waveguide Grooved
- Output Connector
- N Type 50 Ohm
Specific References
• Input Band: 7.25–7.75 GHz
• LO Stability: ±10 kHz (Auto-reference with external 10 MHz)
• Noise Figure: 0.7 dB
• Output Connector: N-type, 50 Ω
