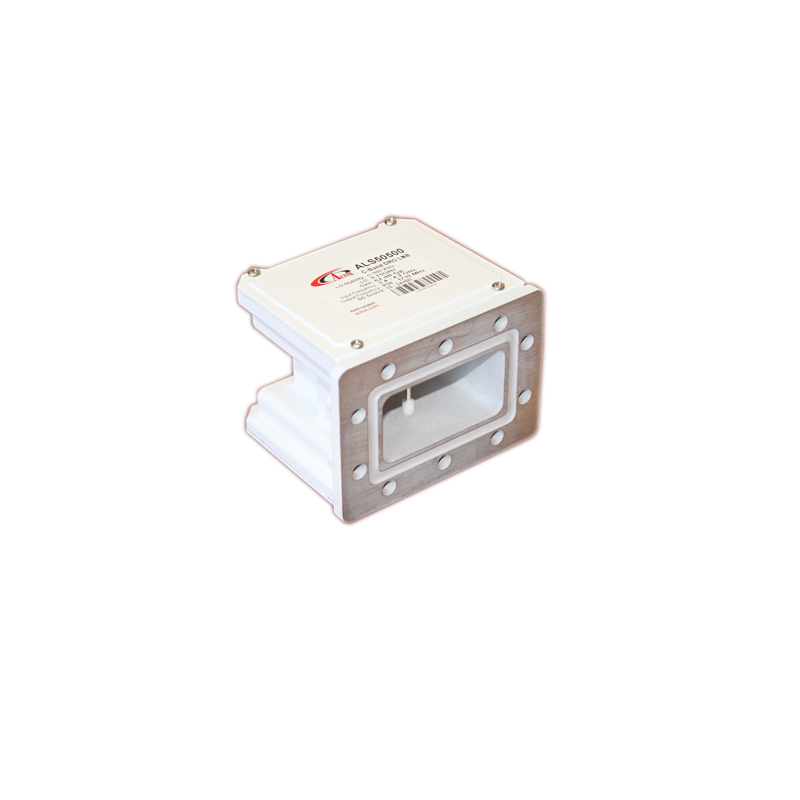

Actox ALS50500 – C-Band Single-Band DRO LNB
• Input Band: 3.4–4.2 GHz
• LO Stability: ±500 kHz
• Noise Temperature: 15K
• Output Connector: F or N type
Security policy
Delivery policy
Return policy
Actox ALS50500 Single-Band C-Band PLL LNB
The Actox ALS50500 is a single-band C-Band PLL LNB with ±500 kHz LO stability and a typ. 15K noise temperature, designed for precise downlinking from 3.4 to 4.2 GHz. Featuring a 75 Ohm F-type output or a 50 Ohm N-type output, CPR229G waveguide input, and rugged IP-rated construction, it ensures stable, high-quality SATCOM reception.
Frequency Band: 3.4–4.2 GHz
Output Frequency: 950–1750 MHz
Local Oscillator: 5.15 GHz
LO Stability: ±500 kHz
Noise Temperature: typ. 15K, max. 20K
Conversion Gain: 62 dB typ., 66 dB max., ≤4 dB p-p flatness
Output Connector: F 75 Ohm or N 50 Ohm
Input: CPR229G waveguide grooved
Power: +12 to +24 VDC, 300 mA max
Environmental: -40°C to +60°C
Dimensions: 99.3 x 99.6 x 71.5 mm; Weight: 0.5 kg
ALS50500
- Type
- Single LNBs
- Frequency Band
- C-Band
- Frequency Range
- 3.4 – 4.2 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1750 MHz
- LO Frequency
- 5.15 GHz
- LO Stability
- ±500 kHz
- Noise Figure
- 0.22 dB
- Typical Gain
- 62 dB
- Input Interface
- CPR 229G Waveguide Grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
