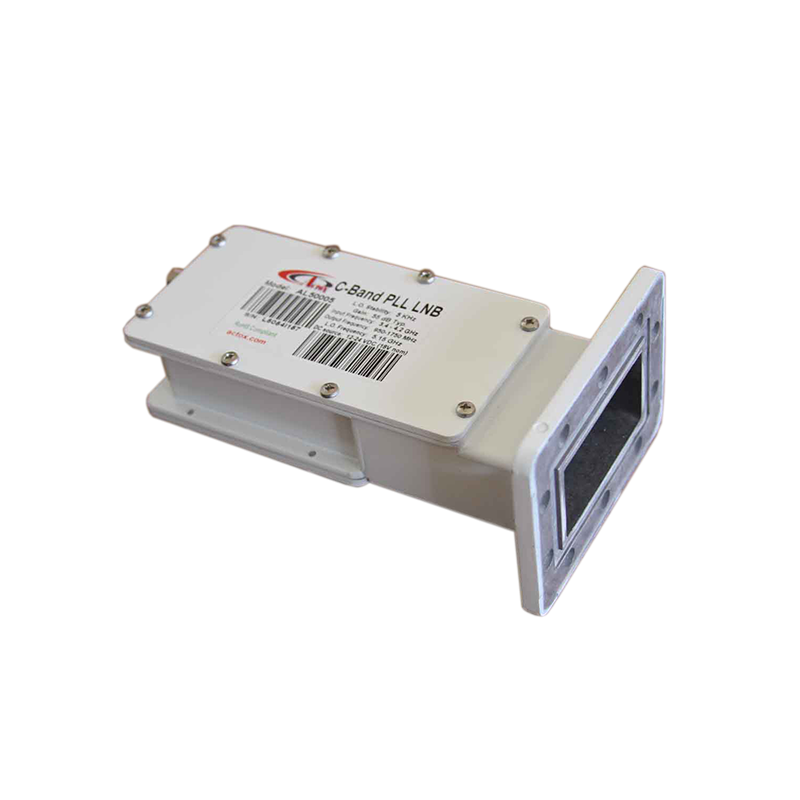

Actox AL50005 / AL50005N C-Band PLL LNB
The Actox AL50005 / AL50005N is a single-band C-Band PLL LNB with ±5 kHz LO stability and a typ. 20K noise temperature, designed for precise downlinking from 3.4 to 4.2 GHz. Featuring a 75 Ohm F-type output or a 50 Ohm N-type output, CPR229G waveguide input, and rugged IP-rated construction, it ensures stable, high-quality SATCOM reception.
Frequency Band: 3.4–4.2 GHz
Output Frequency: 950–1750 MHz
Local Oscillator: 5.15 GHz
LO Stability: ±5 kHz
Noise Temperature: typ. 20K, max. 30K
Conversion Gain: 55 dB typ., ≤5 dB p-p flatness
Output Connector: F 75 Ohm or N 50 Ohm
Input: CPR229G waveguide grooved
Power: +12 to +24 VDC, 250 mA max
Environmental: -40°C to +60°C
Dimensions: 144 x 68 x 39 mm; Weight: 0.5 kg
AL50005
- Type
- Single LNBs
- Frequency Band
- C-Band
- Frequency Range
- 3.4 – 4.2 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1750 MHz
- LO Frequency
- 5.15 GHz
- LO Stability
- ±5 kHz
- Noise Figure
- 0.29 dB
- Typical Gain
- 55 dB
- Input Interface
- CPR 229G Waveguide Grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
