Actox AL6X Ext. Ref. C-Band LNB

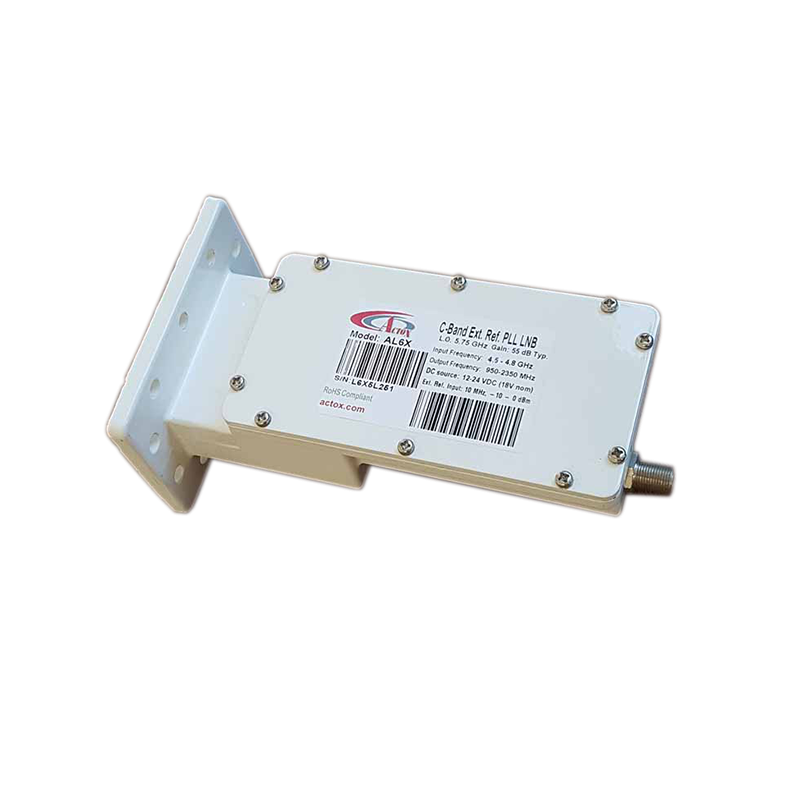

The Actox AL6X / AL6XN is a single-band C-Band PLL LNB with external reference LO stability and a typ. 0.8 dB noise figure, designed for precise downlinking from 4.5 to 4.8 GHz. Featuring a 75 Ohm F-type output or a 50 Ohm N-type output, CPR229G waveguide input, and rugged IP-rated construction, it ensures stable, high-quality SATCOM reception.
Frequency Band: 4.5–4.8 GHz
Output Frequency: 950–1250 MHz
Local Oscillator: 5.75 GHz
LO Stability: Depends on External Reference
Noise Figure: typ. 0.8 dB
Conversion Gain: 65 dB typ. ≤8 dB p-p flatness
Output Connector: F 75 Ohm or N 50 Ohm
Input: CPR229G waveguide grooved
Power: +12 to +24 VDC, 250 mA max
Environmental: -40°C to +60°C
Dimensions: 179.5 x 98.8 x 70 mm; Weight: 0.575 kg
AL6X, AL6XN
- Type
- Single LNBs
- Frequency Band
- C-Band
- Frequency Range
- 4.5 – 4.8 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1250 MHz
- LO Frequency
- 5.75 GHz
- LO Stability
- External Reference
- Noise Figure
- 0.8 dB
- Typical Gain
- 65 dB
- Input Interface
- CPR 229G Waveguide Grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
