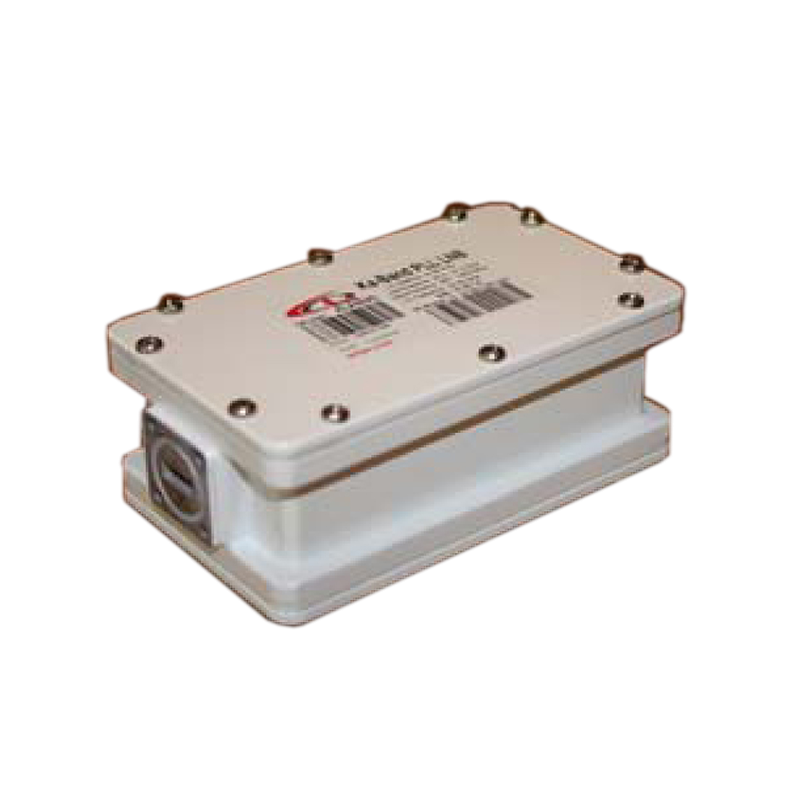

Actox ALA0025 Ka-Band PLL LNB
The Actox ALA0025 is a single-band Ka-Band PLL LNB with ±25 kHz LO stability and a max. 1.5 dB noise figure, designed for precise downlinking from 18.2 to 19.2 GHz.
Frequency Band: 18.2–19.2 GHz
Output Frequency: 950–1950 MHz
Local Oscillator: 17.25 GHz
LO Stability: ±25 kHz
Noise Figure: 1.5 dB max.
Conversion Gain: 55 dB typ. ≤5 dB p-p flatness
Output Connector: F 75 Ohm or N 50 Ohm
Input: WR42 waveguide grooved
Power: +12 to +24 VDC, 300 mA max
Environmental: -40°C to +60°C
Dimensions: 101 x 60 x 41 mm; Weight: 0.35 kg
ALA0025, ALA0025F
- Type
- Single LNBs
- Frequency Band
- Ka-Band
- Frequency Range
- 18.20 – 19.20 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1950 MHz
- LO Frequency
- 17.25 GHz
- LO Stability
- ±25 kHz
- Noise Figure
- 1.5 dB
- Typical Gain
- 55 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
