Actox AL177212E Quad Ka-Band PLL LNB
• Input Band: 17.7–21.2 GHz
• LO Stability: External Reference
• Noise Figure: 2.0 dB
• Output Connector: F or N Type
Security policy
Delivery policy
Return policy

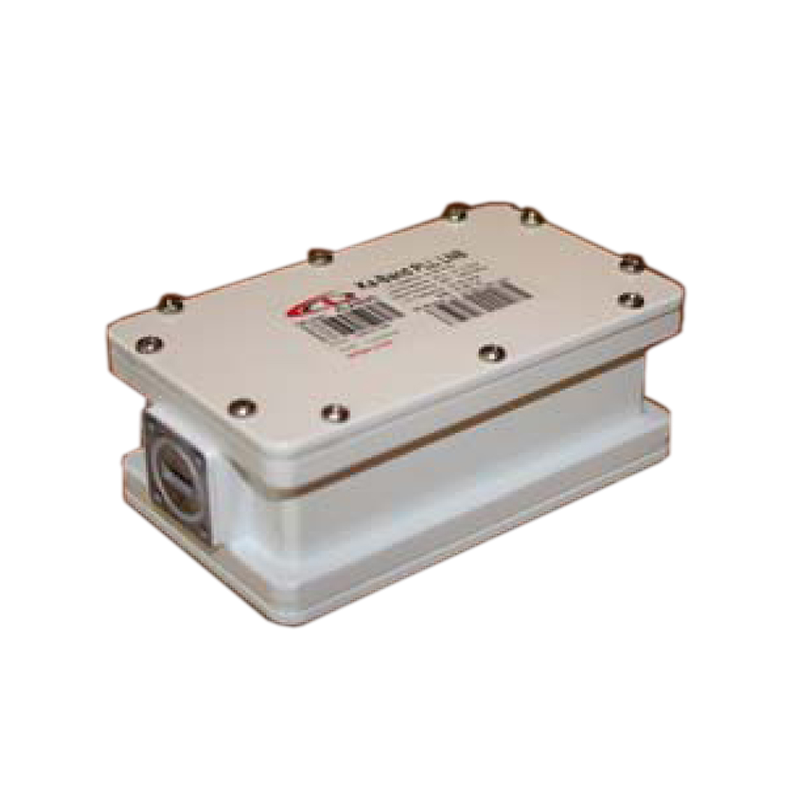

Actox AL177212E Ka-Band PLL LNB
The Actox AL177212E is a Quad-band Ka-Band PLL LNB with external reference LO stability and a max. 2.0 dB noise figure, designed for precise downlinking from 17.7 to 21.2 GHz.
Frequency Band: 17.7–21.2 GHz
Output Frequency: 950–1950 MHz
Local Oscillator: Quad LOs 16.75, 17.25, 18.25, 19.25 GHz
Noise Figure: 2.0 dB max.
Conversion Gain: 60 dB typ. ≤4 dB p-p flatness
Output Connector: F 75 Ohm or N 50 Ohm
Input: WR42 waveguide grooved
Power: +12 to +24 VDC, 450 mA max
Environmental: -40°C to +60°C
Dimensions: 117.4 x 66.8 x 38.4 mm; Weight: 0.52 kg
AL177212E, AL177212EN
- Type
- Single LNBs
- Frequency Band
- Ka-Band
- Frequency Range
- 17.70 – 21.20 GHz
- Number of Bands
- 4-Band
- Output Band
- Band 1: 950 – 1950 MHz
- LO Frequency
- Multiple LO
- LO Stability
- External Reference
- Noise Figure
- 2.0 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
