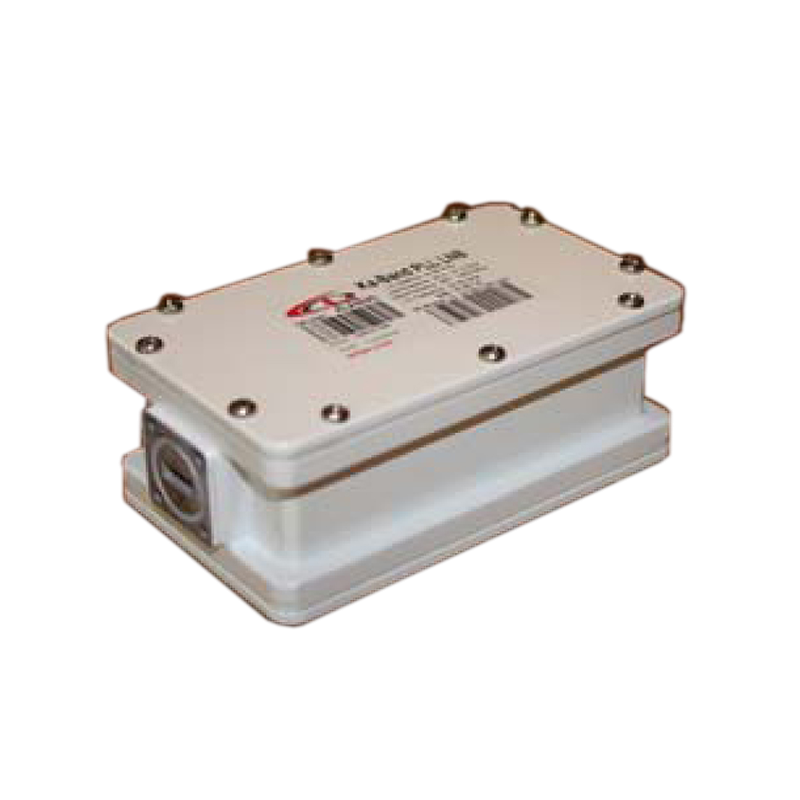

Actox AL2L19721210 Dual Ka-Band PLL LNB
The Actox AL2L19721210 is a Dual-band Ka-Band PLL LNB with ±10 kHz LO stability and a max. 1.6 dB noise figure, designed for precise downlinking from 19.7 to 21.2 GHz.
Frequency Band: 19.7–21.2 GHz
Output Frequency: 950–1450 MHz
Local Oscillator: Switchable Dual LOs 18.75 and 19.75 GHz
Noise Figure: 1.6 dB max.
Conversion Gain: 60 dB typ. ≤5 dB p-p flatness
Output Connector: F 75 Ohm or N 50 Ohm
Input: WR42 waveguide grooved
Power: +12 to +24 VDC, 450 mA max
Environmental: -40°C to +60°C
Dimensions: 103.6 x 60 x 45 mm; Weight: 0.42 kg
AL2L19721210, AL2L19721210N
- Type
- Single LNBs
- Frequency Band
- Ka-Band
- Frequency Range
- 19.70 - 21.20 GHz
- Number of Bands
- 2-Band
- Output Band
- Band 1: 950 – 1450 MHz
- LO Frequency
- Multiple LO
- LO Stability
- ±10 kHz
- Noise Figure
- 1.6 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
