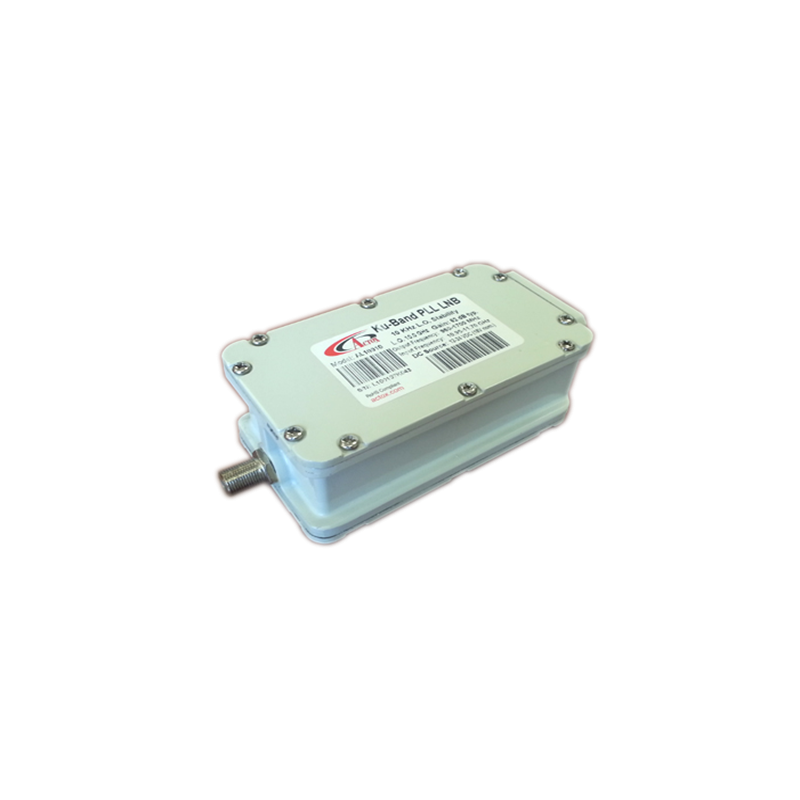

Actox AL20010 Ku-Band PLL LNB
The Actox AL20010 is a Single-band Ku-Band PLL LNB with ±10 kHz LO stability and a max. 0.8 dB noise figure, designed for precise downlinking from 11.7 to 12.2 GHz.
Frequency Band: 11.7–12.2 GHz
Output Frequency: 950–1450 MHz
Local Oscillator: 10.75 GHz
Noise Figure: 0.8 dB max.
Conversion Gain: 55 dB typ. ≤4 dB p-p flatness
Output Connector: F 75 Ohm or N 50 Ohm
Input: WR42 waveguide grooved
Power: +12 to +24 VDC, 300 mA max
Environmental: -40°C to +60°C
Dimensions: 127.5 x 60 x 40 mm; Weight: 0.35 kg
AL20010, AL20010N
- Type
- Single LNBs
- Frequency Band
- Ka-Band
- Frequency Range
- 11.70 – 12.20 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1450 MHz
- LO Frequency
- 10.75 GHz
- LO Stability
- ±10 kHz
- Noise Figure
- 0.8 dB
- Typical Gain
- 55 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
