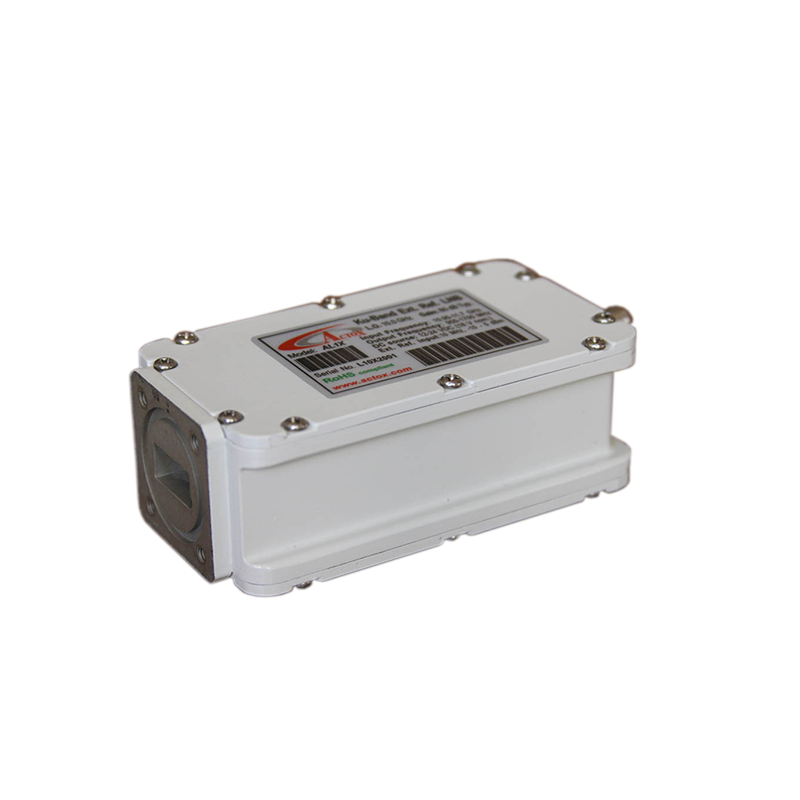

Actox AL1X Ext. Ref. Ku-Band LNB
• Input Band: 10.95–11.7 GHz
• LO Stability: External Reference
• Noise Figure: 0.8 dB
• Output Connector: F or N Type
Security policy
Delivery policy
Return policy
Actox AL1X Ku-Band PLL LNB
The Actox AL1X is a Single-band Ku-Band PLL LNB with external reference LO stability and a max. 0.8 dB noise figure, designed for precise downlinking from 10.95 to 11.7 GHz.
Frequency Band: 10.95–11.7 GHz
Output Frequency: 950–1700 MHz
Local Oscillator: 10.00 GHz
Noise Figure: 0.9 dB max.
Conversion Gain: 60 dB typ. ≤4 dB p-p flatness
Output Connector: F 75 Ohm or N 50 Ohm
Input: WR42 waveguide grooved
Power: +12 to +24 VDC, 280 mA max
Environmental: -40°C to +60°C
Dimensions: 107 x 60 x 40 mm; Weight: 0.38 kg
AL1X
- Type
- Single LNBs
- Frequency Band
- Ka-Band
- Frequency Range
- 10.95 – 11.70 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1700 MHz
- LO Frequency
- 10.00 GHz
- LO Stability
- External Reference
- Noise Figure
- 0.8 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
Specific References
• Input Band: 10.95–11.7 GHz
• LO Stability: External Reference
• Noise Figure: 0.8 dB
• Output Connector: F or N Type
