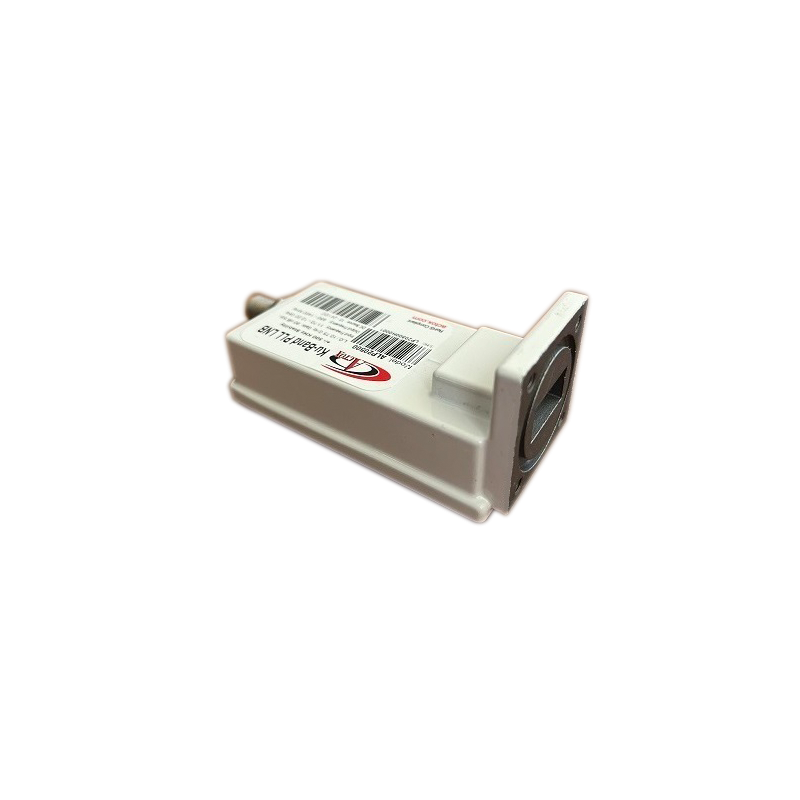

Actox ALP20500 Ku-Band PLL LNB
• Input Band: 11.7–12.2 GHz
• LO Stability: ±500 kHz
• Noise Figure: 0.8 dB
• Output Connector: F or N Type
Security policy
Delivery policy
Return policy
Actox ALP20500 Ku-Band DRO LNB
The Actox ALP20500 is a Single-band Ku-Band PLL LNB with ±500 kHz LO stability and a max. 0.8 dB noise figure, designed for precise downlinking from 11.7 to 12.2 GHz.
Frequency Band: 11.7–12.2 GHz
Output Frequency: 950–1450 MHz
Local Oscillator: 10.75 GHz
Noise Figure: 0.8 dB max.
Conversion Gain: 60 dB typ. ≤3 dB p-p flatness
Output Connector: F 75 Ohm or N 50 Ohm
Input: WR75 waveguide grooved
Power: +15 to +24 VDC, 150 mA max
Environmental: -40°C to +60°C
Dimensions: 101.8 x 44.6 x 42 mm; Weight: 0.19 kg
ALP20500, ALP20500N
- Type
- Single LNBs
- Frequency Band
- Ku-Band
- Frequency Range
- 11.70 – 12.20 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1450 MHz
- LO Frequency
- 10.75 GHz
- LO Stability
- ±500 kHz
- Noise Figure
- 0.8 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
Specific References
• Input Band: 11.7–12.2 GHz
• LO Stability: ±500 kHz
• Noise Figure: 0.8 dB
• Output Connector: F or N Type
