Actox AL1012010 Ku-Band PLL LNB
• Input Band: 10.95–12.75 GHz
• LO Stability: ±10 kHz
• Noise Figure: 1.0 dB
• Output Connector: F or N Type
Security policy
Delivery policy
Return policy
Actox AL1012010 Ku-Band PLL LNB

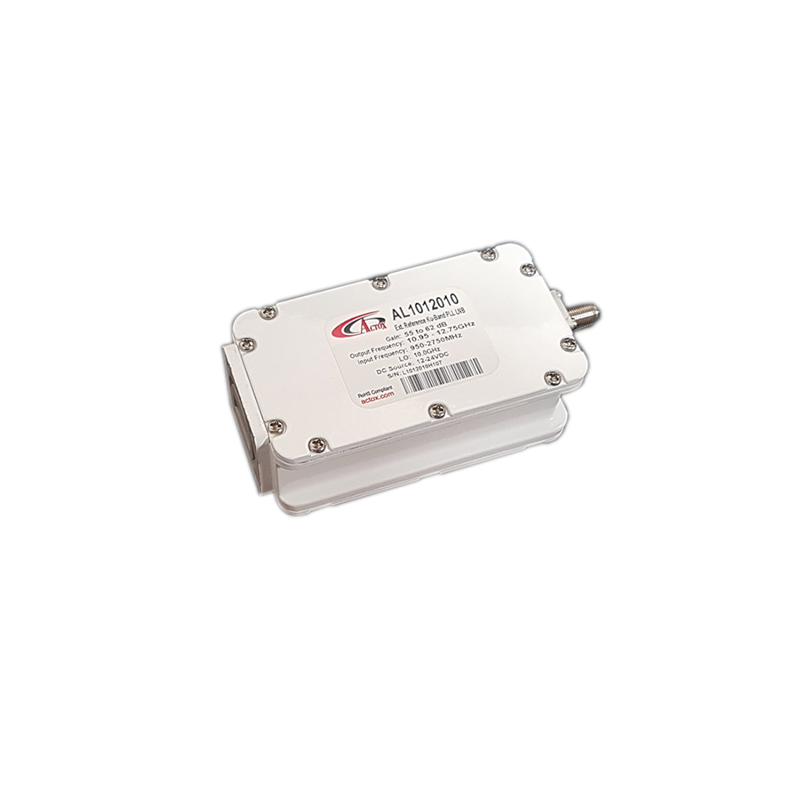

The Actox AL1012010 is a Single-band Ku-Band PLL LNB with ±10 kHz LO stability and a max. 1.0 dB noise figure, designed for precise downlinking from 10.95 to 12.75 GHz.
Frequency Band: 10.95–12.75 GHz
Output Frequency: 950–2750 MHz
Local Oscillator: 10.00 GHz
Noise Figure: 1.0 dB max.
Conversion Gain: 55 dB typ. ≤6 dB p-p flatness
Output Connector: F 75 Ohm or N 50 Ohm
Input: WR75 waveguide grooved
Power: +12 to +24 VDC, 350 mA max
Environmental: -40°C to +60°C
Dimensions: 111.5 x 60 x 41.6 mm; Weight: 0.38 kg
AL1012010, AL1012010N
- Type
- Single LNBs
- Frequency Band
- Ku-Band
- Frequency Range
- 10.95 – 12.75 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 2750 MHz
- LO Frequency
- 10.00 GHz
- LO Stability
- ±10 kHz
- Noise Figure
- 1.0 dB
- Typical Gain
- 55 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
