Actox AL2L0010 / AL2L0010N Dual Ku-Band PLL LNB
Covers 10.70–12.75 GHz in two sub-bands:
• Band 1: 10.70–11.70 GHz
• Band 2: 11.70–12.75 GHz
• Dual L.O. 9.75 GHz and 10.6 GHz
• LO Stability: ±10 kHz
• Noise Figure: 0.7 dB
• Output Connector: F or N Type
Security policy
Delivery policy
Return policy
Actox AL2L0010 / AL2L0010N Dual L.O. Ku-Band PLL LNB

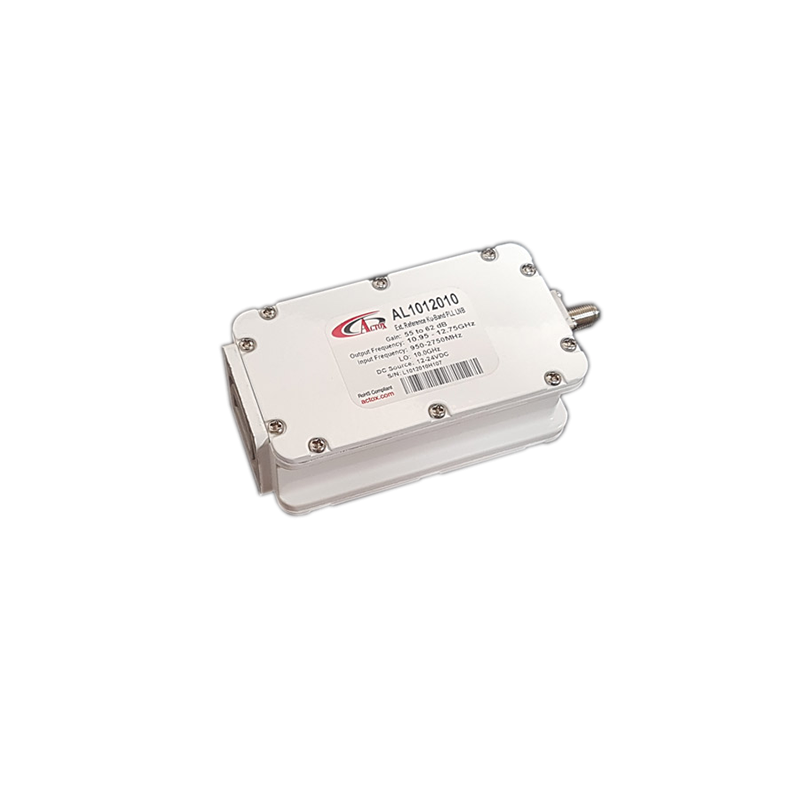

The Actox AL2L0010 / AL2L0010N is a dual-band Ku-Band PLL LNB with ±10 kHz LO stability and a typ. 0.7 dB noise figure, designed for precise downlinking from 10.7 to 12.75 GHz.
Frequency Band: 10.7–12.75 GHz
Output Frequency: 950–2150 MHz
Local Oscillator: Dual LO 9.75 GHz and 10.6 GHz
Noise Figure: 0.7 dB typ.
Conversion Gain: 60 dB typ. ≤4 dB p-p flatness
Output Connector: F 75 Ohm or N 50 Ohm
Input: WR75 waveguide grooved
Power: +12 to +24 VDC, 300 mA max
Environmental: -40°C to +60°C
Dimensions: 111.5 x 60 x 41.6 mm; Weight: 0.38 kg
AL2L0010, AL2L0010N
- Type
- Single LNBs
- Frequency Band
- Ku-Band
- Frequency Range
- 10.95 – 12.75 GHz
- Number of Bands
- 2-Band
- Sub-Band
- Band 1: 10.7–11.7 GHz
- Sub-Band
- Band 2: 11.7–12.75 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 1100 – 2150 MHz
- LO Frequency
- Multiple LO
- LO Stability
- ±10 kHz
- Noise Figure
- 0.7 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
Specific References
Covers 10.70–12.75 GHz in two sub-bands:
• Band 1: 10.70–11.70 GHz
• Band 2: 11.70–12.75 GHz
• Dual L.O. 9.75 GHz and 10.6 GHz
• LO Stability: ±10 kHz
• Noise Figure: 0.7 dB
• Output Connector: F or N Type
