Actox AL4L0010 / AL4L0010N 4-L.O. Ku-Band PLL LNB
Covers 10.70–12.75 GHz in four sub-bands:
• Band 1: 10.70–11.70 GHz
• Band 2: 10.95–11.70 GHz
• Band 3: 11.70–12.75 GHz
• Band 4: 12.25–12.75 GHz
• Four L.O. 9.75, 10.0, 10.75 and 11.3 GHz
• LO Stability: ±10 kHz
• Noise Figure: 0.8 dB
• Output Connector: F or N Type
Security policy
Delivery policy
Return policy

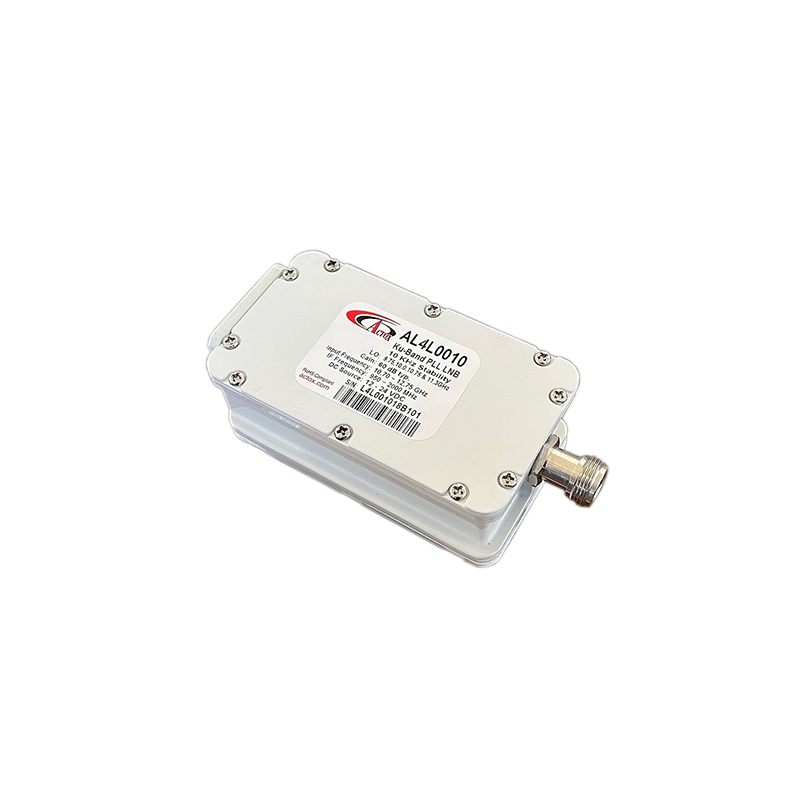

Actox AL4L0010 Quad Ku-Band PLL LNB
The Actox AL4L0010 / AL4L0010N is a quad Ku-Band PLL LNB with ±10 kHz LO stability and a max. 0.8 dB noise figure, designed for precise downlinking from 10.7 to 12.75 GHz.
Frequency Band: 10.7–12.75 GHz
Output Frequency: 950–2000 MHz
Local Oscillator: Four LO 9.75, 10.0, 10.75 and 11.3 GHz
Noise Figure: 0.8 dB typ.
Conversion Gain: 60 dB typ. ≤5 dB p-p flatness
Output Connector: F 75 Ohm or N 50 Ohm
Input: WR75 waveguide grooved
Power: +12 to +24 VDC, 350 mA max
Environmental: -40°C to +60°C
Dimensions: 111.5 x 60 x 41.6 mm; Weight: 0.4 kg
AL4L0010, AL4L0010N
- Type
- Single LNBs
- Frequency Band
- Ku-Band
- Frequency Range
- 10.70 – 12.75 GHz
- Number of Bands
- 4-Band
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1700 MHz
- Output Band
- Band 4: 950 – 1450 MHz
- Output Band
- Band 3: 950 – 2000 MHz
- LO Frequency
- Multiple LO
- LO Stability
- ±10 kHz
- Noise Figure
- 0.8 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
Specific References
Covers 10.70–12.75 GHz in four sub-bands:
• Band 1: 10.70–11.70 GHz
• Band 2: 10.95–11.70 GHz
• Band 3: 11.70–12.75 GHz
• Band 4: 12.25–12.75 GHz
• Four L.O. 9.75, 10.0, 10.75 and 11.3 GHz
• LO Stability: ±10 kHz
• Noise Figure: 0.8 dB
• Output Connector: F or N Type
