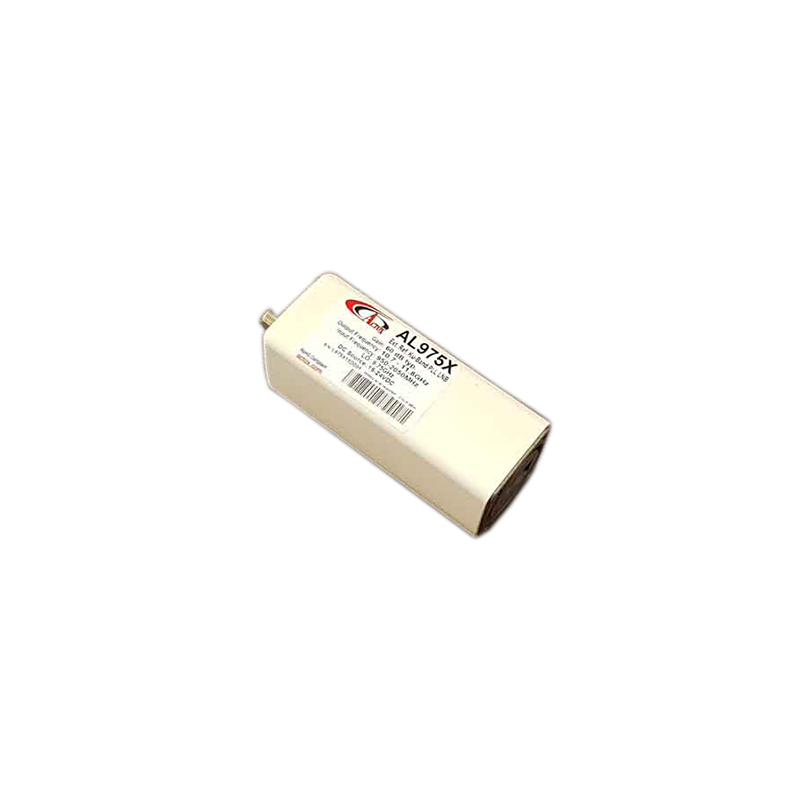

Actox AL975X / AL975XN External Reference Ku-Band PLL LNB
• Input Band: 10.7–11.8 GHz
• LO Stability: External Reference
• Noise Figure: 0.8 dB
• Output Connector: F or N Type
Security policy
Delivery policy
Return policy
Actox AL975X External Reference Ku-Band PLL LNB
The Actox AL975X / AL975XN is a Ku-Band PLL LNB with external reference LO stability and a max. 0.8 dB noise figure, designed for precise downlinking from 10.7 to 11.8 GHz.
Frequency Band: 10.7–11.8 GHz
Output Frequency: 950–2050 MHz
Local Oscillator: 9.75 GHz
Noise Figure: 0.8 dB max.
Conversion Gain: 60 dB typ.
Output Connector: F 75 Ohm or N 50 Ohm
Input: WR75 waveguide grooved
Power: +12 to +24 VDC, 350 mA max
Environmental: -40°C to +60°C
Dimensions: 99.5 x 42 x 42 mm; Weight: 0.3 kg
AL975X, AL975XN
- Type
- Single LNBs
- Frequency Band
- Ku-Band
- Frequency Range
- 10.70 – 11.80 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 2050 MHz
- LO Frequency
- 9.75 GHz
- LO Stability
- External Reference
- Noise Figure
- 0.8 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
Specific References
• Input Band: 10.7–11.8 GHz
• LO Stability: External Reference
• Noise Figure: 0.8 dB
• Output Connector: F or N Type
