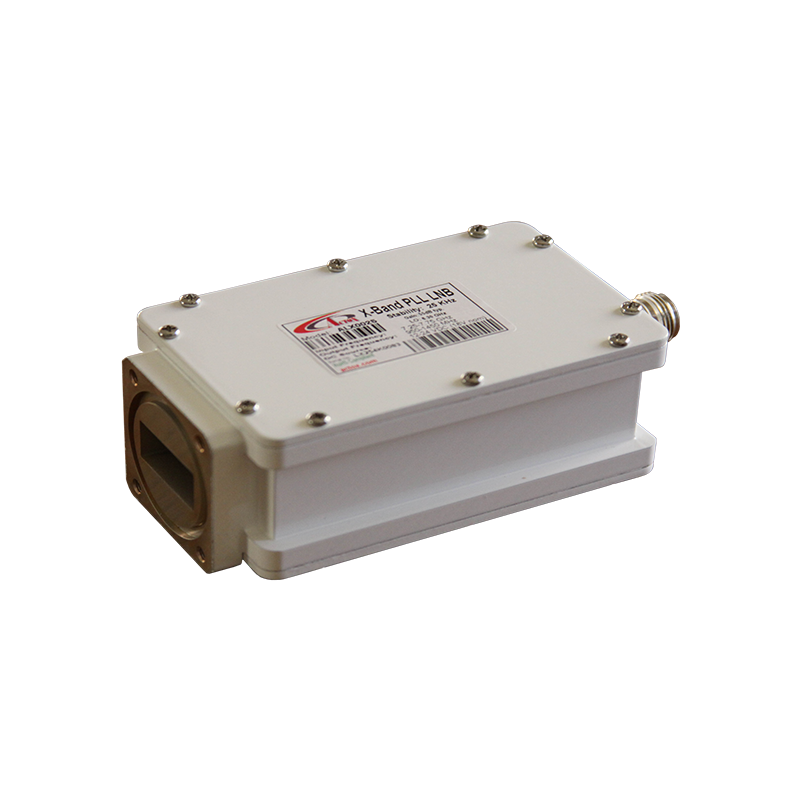

Actox ALXX External Reference X-Band PLL LNB
The Actox ALXX is a X-Band PLL LNB with external reference LO stability and a max. 0.8 dB noise figure, designed for precise downlinking from 7.25 to 7.75 GHz.
Frequency Band: 7.25–7.75 GHz
Output Frequency: 950–1450 MHz
Local Oscillator: 6.3 GHz
Noise Figure: 0.8 dB max.
Conversion Gain: 55 dB typ.
Output Connector: F 75 Ohm or N 50 Ohm
Input: WR112 waveguide grooved
Power: +12 to +24 VDC, 300 mA max
Environmental: -40°C to +60°C
Dimensions: 135 x 70 x 51 mm; Weight: 0.45 kg
ALXX
- Type
- Single LNBs
- Frequency Band
- X-Band
- Frequency Range
- 7.25 – 7.75 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1450 MHz
- LO Frequency
- 6.30 GHz
- LO Stability
- External Reference
- Noise Figure
- 0.8 dB
- Typical Gain
- 55 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
