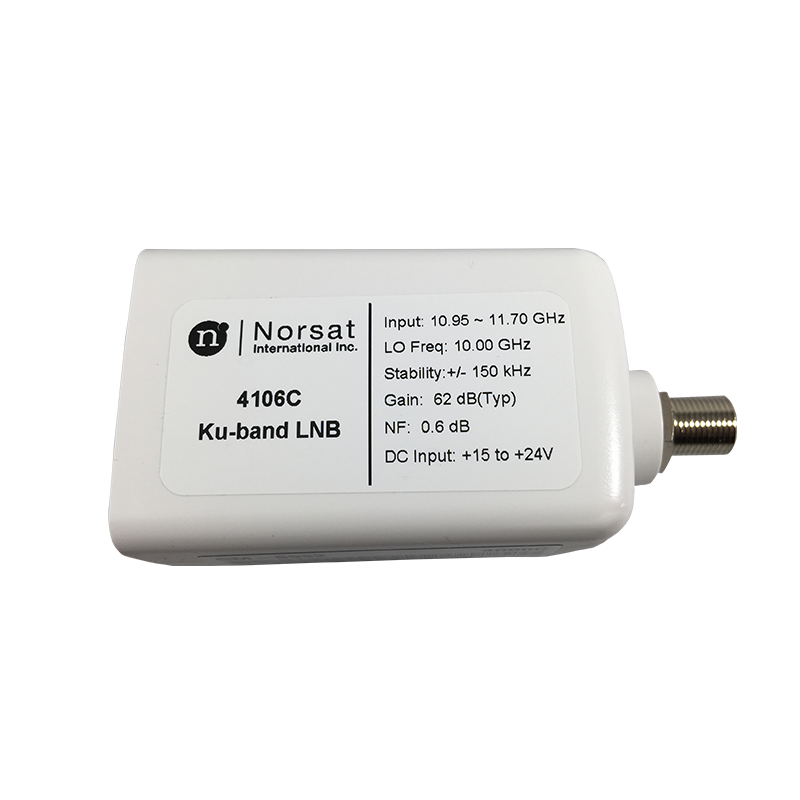

Norsat 4106CF – Ku-Band Single-Band DRO LNB, F-Type (75Ω)
$128.00
• Input Band: 10.95–11.70 GHz
• LO Stability: ±150 kHz
• Noise Figure: 0.6 dB
• Output Connector: F-type, 75 Ω
End of Life, replaced with 4107CF
Security policy
Delivery policy
Return policy
4106CF
- Frequency Band
- Ku-Band
- Frequency Range
- 10.95 – 11.70 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1700 MHz
- LO Frequency
- 10.00 GHz
- LO Stability
- ±150 kHz
- Noise Figure
- 0.6 dB
- Typical Gain
- 62 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- F Type 75 Ohm
Specific References
• Input Band: 10.95–11.70 GHz
• LO Stability: ±150 kHz
• Noise Figure: 0.6 dB
• Output Connector: F-type, 75 Ω
End of Life, replaced with 4107CF
