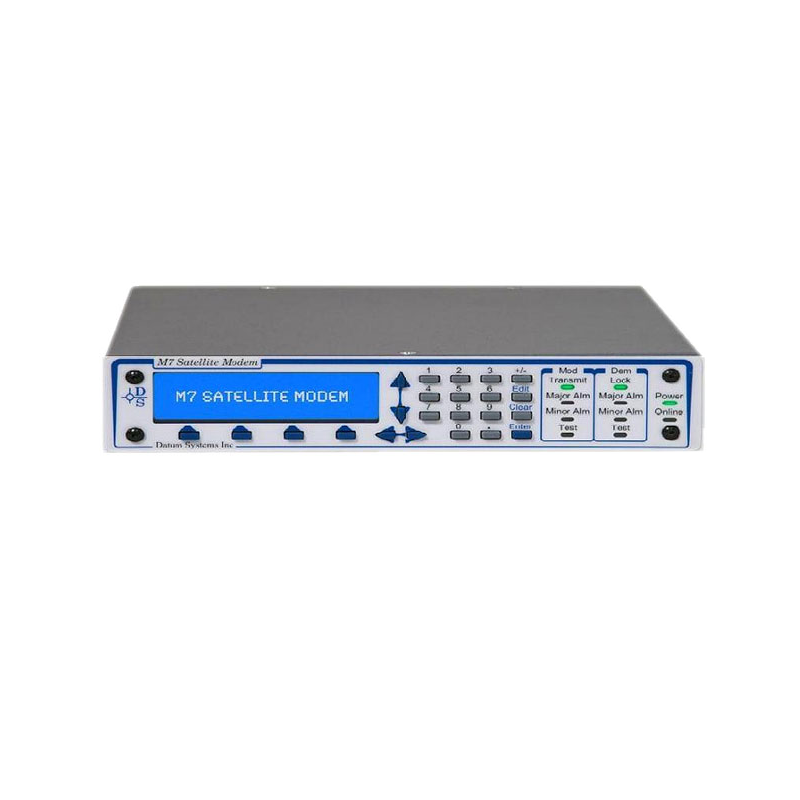

Datum M7LT L-Band Satellite Modem Terminal with FlexLDPC and ACM

Datum M7LT L-Band Satellite Modem Terminal with FlexLDPC and ACM

The Datum Systems M7LT is a compact, bandwidth-efficient L-band satellite modem terminal designed for point-to-point, point-to-multipoint, mesh, unicast and multicast networks. Operating across 950–2150 MHz, the M7LT supports data rates from 1.2 kbps to 59.04 Mbps with precise 1 bps adjustment.

Advanced FlexLDPC, Adaptive Coding and Modulation (ACM), AUPC and sharp carrier filtering help maximize satellite bandwidth, throughput and link availability. Datum’s Smart Carrier Cancelling technology allows two similar carriers to occupy the same transponder spectrum, providing bandwidth savings of approximately 50%.

The M7LT offers flexible Ethernet, serial and dual G.703/E1 interfaces. Available AC or DC input, internal BUC and LNB power supplies, and a high-stability 10 MHz reference make it a complete modem platform for cellular backhaul, enterprise networks, IP trunking, E1 services and on-the-move SATCOM terminals.

Frequency Range: 950–2150 MHz
Data Rate: 1.2 kbps–59.04 Mbps, adjustable in 1 bps steps
Symbol Rate: 2.4 ksps–14.76 Msps
Operating Modes: SCPC transmit and receive
Modulation: BPSK, QPSK, OQPSK, 8PSK, 8QAM and 16QAM
FEC: FlexLDPC, optional TPC, Viterbi, Reed-Solomon and TCM
Network Architectures: Point-to-point, point-to-multipoint, mesh, unicast and multicast
Carrier Roll-Off: As low as 5%
Ethernet Interface: Five-port Layer 2 switched bridge with optional SFP
Additional Interfaces: Synchronous serial and dual G.703/E1
Management: Web browser, SNMP, RS-232 and RS-485
Input Power: 90–264 VAC or optional 20–60 VDC
BUC Power: Available up to 200 W, depending on configuration
LNB Power: Selectable off, 13 VDC or 18 VDC
Reference Frequency: High-stability internal 10 MHz reference
Operating Temperature: 0°C to +50°C
Dimensions: 19 × 11 × 1.75 inches
Weight: 10 lb fully configured

Key Features:

• Bandwidth-efficient L-band satellite modem terminal

• FlexLDPC with multiple block sizes and code rates

• Adaptive Coding and Modulation for improved throughput

• Smart Carrier Cancelling for approximately 50% bandwidth savings

• Sharp carrier roll-off factors starting at 5%

• Low processing latency and fast signal acquisition

• Five-port Gigabit Ethernet Layer 2 bridge

• Optional Gigabit Ethernet or fiber SFP port

• Serial and dual G.703/E1 interface options

• Integrated BUC and LNB power options

• High-stability 10 MHz reference

• Built-in 1:1 redundancy control

• Local and remote web-browser and SNMP management
