Datum M7LT L-Band Satellite Terminal

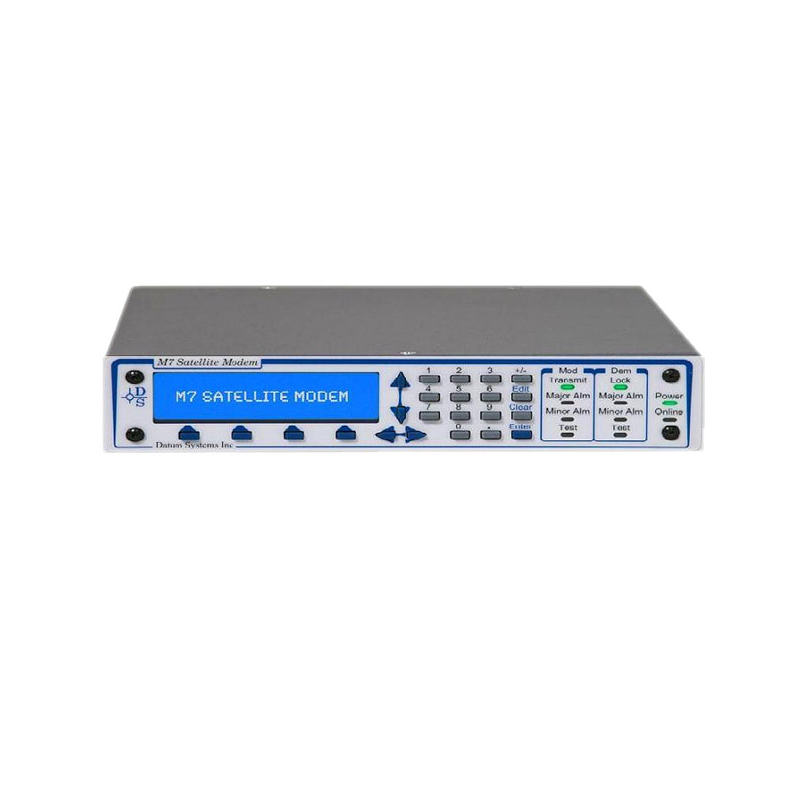

Datum Systems M7LT L-Band Satellite Terminal

The Datum Systems M7LT is a high-efficiency L-Band satellite terminal designed for professional fixed, mobile, and on-the-move SATCOM applications. Operating from 950–2150 MHz, it integrates internal BUC and LNB power supplies with a high-stability 10 MHz OCXO reference. Supporting advanced FlexLDPC, ACM, and Smart Carrier Cancelling, the M7LT delivers ultra-low latency, fast acquisition, and data rates up to 59.04 Mbps in a compact 1RU rack-mount platform.

Frequency Band: 950–2150 MHz

Data Rate Range: 1.2 kbps to 59.04 Mbps
Symbol Rate Range: 2400 sps to 14.76 Msps
Modulation: BPSK, QPSK, OQPSK, 8PSK, 8QAM, 16QAM
FEC: FlexLDPC, TPC (opt.), Viterbi, Reed Solomon, TCM
Roll-Off Factors: 5, 8, 10, 15, 20, 25, 30, 35, 40 %
10 MHz Reference: Internal OCXO, typ. –3 dBm
Reference Stability: 1 × 10⁻⁸ OCXO, 2 × 10⁻⁷/year aging
BUC Power Options:
  • AC models: 24 VDC up to 120 W
  • DC models: 48 VDC up to 200 W
LNB Power: Selectable Off / 13 V / 18 V
Tx Output Level: +5 to –35 dBm
Interfaces: Ethernet (5-port L2 switch + SFP), Serial, Dual G.703/E1
Ethernet Features: QoS, VLAN, Jumbo Frames up to 9000 bytes
Operating Modes: Tx & Rx SCPC, ACM, Smart Carrier Cancelling
Latency: <15 ms at 64 kbps, ¾ QPSK
Operating Temperature: 0 °C to +50 °C
Storage Temperature: –20 °C to +70 °C
Form Factor: 1RU, 19-inch rack mount
Dimensions: 19 × 11 × 1.75 in
Weight: typ. 10 lb fully configured
Compliance: CE, RoHS, ETSI EN 301 489, EN60950
