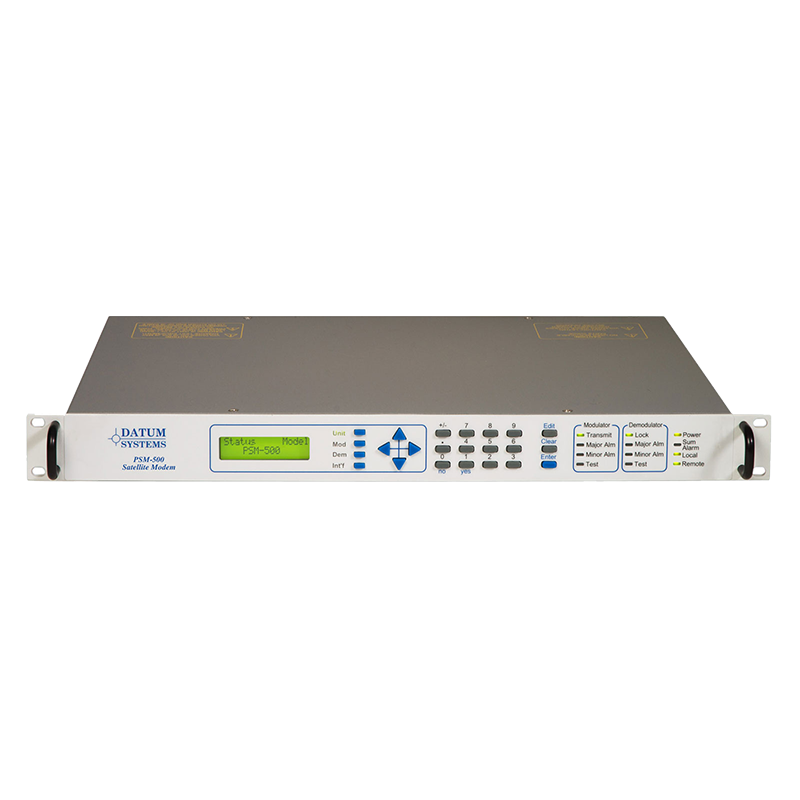

Datum PSM-500 70/140 MHz IF Satellite Modem with FlexLDPC

Datum PSM-500 70/140 MHz IF Satellite Modem with FlexLDPC

The Datum Systems PSM-500 is a versatile 70/140 MHz IF satellite modem designed for bandwidth-efficient SCPC communications. Supporting continuous transmit and receive operation, the modem is suitable for point-to-point, point-to-multipoint, mesh, multicast and unidirectional satellite networks.

The PSM-500 provides data rates from 1.2 kbps to 29.52 Mbps with advanced FlexLDPC forward error correction, multiple block sizes and granular code-rate selection. Optional TPC, Viterbi, Trellis and Reed-Solomon coding provide compatibility with a wide variety of existing satellite networks.

Flexible Ethernet, advanced IP, serial, HSSI and dual G.703/E1 interfaces support cellular backhaul, enterprise networks, E1 trunking and on-the-move communications. The PSM-500 is also backward compatible with the legacy Datum PSM-4900 modem series.

Frequency Range: 50–90 MHz or 100–180 MHz IF
Nominal IF: 70 or 140 MHz
Operating Modes: Continuous SCPC transmit and receive; optional burst transmit
Data Rate: 1.2 kbps–29.52 Mbps
Symbol Rate: 2.4 ksps–14.76 Msps
Data-Rate Resolution: 1 bps
Modulation: BPSK, QPSK, OQPSK, 8PSK, 8QAM and 16QAM
FEC: FlexLDPC, TPC, Viterbi, TCM and Reed-Solomon
Transmit Output Level: +5 to -35 dBm
Transmit Impedance: Selectable 50 or 75 ohms
Receive Carrier Input: -20 to -60 dBm; scales to -84 dBm at lower rates
Acquisition Range: ±100 Hz to ±1.25 MHz
Interface Options: Ethernet IP, serial, HSSI and dual G.703/E1
Ethernet Modes: Bridge and router
Network Features: QoS and optional SCPS TCP/IP acceleration
Management: Front-panel LCD and keypad, web browser, SNMP, RS-232 and RS-485
Redundancy: Built-in 1:1 redundancy control
Input Power: 90–264 VAC or optional -48 VDC
Power Consumption: Less than 30 W
Operating Temperature: 0°C to +50°C
Dimensions: 19 × 12 × 1.75 inches, 1RU
Weight: Approximately 7 lb fully configured

Key Features:

• High-performance 70/140 MHz IF satellite modem

• Data rates up to 29.52 Mbps

• Advanced FlexLDPC with multiple block sizes and code rates

• Optional TPC, Viterbi, TCM and Reed-Solomon FEC

• Low latency of less than 15 ms at 64 kbps, 3/4 QPSK

• Fast carrier acquisition

• Advanced Ethernet IP bridge and router modes

• Optional SCPS TCP/IP acceleration

• Dual G.703/E1 with full and fractional drop-and-insert

• Automatic Uplink Power Control

• Remote modem control channel

• Built-in bidirectional BER test set

• Modulator-only and demodulator-only configurations

• Built-in 1:1 redundancy

• Backward compatible with PSM-4900 series modems
