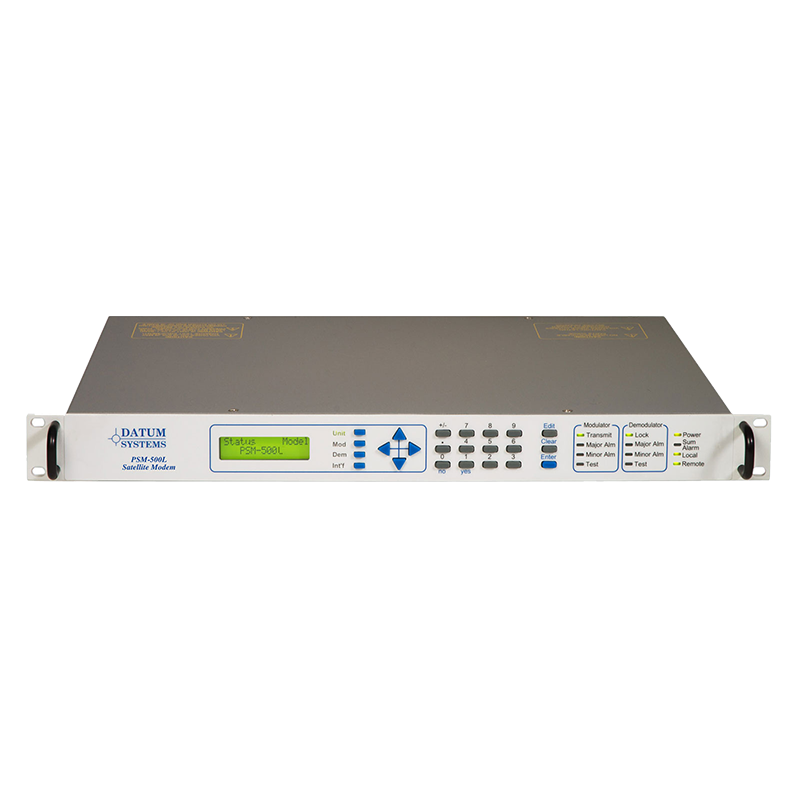

Datum PSM-500L L-Band Satellite Modem with BUC/LNB Power

Datum PSM-500L L-Band Satellite Modem with BUC/LNB Power

The Datum Systems PSM-500L is a versatile L-band satellite modem designed for bandwidth-efficient SCPC communications. It supports continuous transmit and receive operation for point-to-point, point-to-multipoint, mesh, multicast and unidirectional satellite networks.

The PSM-500L provides transmit coverage from 950–1750 MHz, receive coverage from 950–1900 MHz and data rates from 1.2 kbps to 29.52 Mbps. Advanced FlexLDPC coding, optional TPC, Viterbi, TCM and Reed-Solomon FEC provide excellent bandwidth efficiency, low latency and compatibility with many existing satellite networks.

Integrated LNB power, flexible external BUC power options and a high-stability 10 MHz reference simplify terminal installation. Ethernet, advanced IP, serial, HSSI and dual G.703/E1 interfaces support cellular backhaul, enterprise, E1 trunking and mobile SATCOM applications.

Transmit Frequency Range: 950–1750 MHz
Receive Frequency Range: 950–1900 MHz
Operating Modes: Continuous SCPC transmit and receive; optional burst transmit
Data Rate: 1.2 kbps–29.52 Mbps
Symbol Rate: 2.4 ksps–14.76 Msps
Data-Rate Resolution: 1 bps
Modulation: BPSK, QPSK, OQPSK, 8PSK, 8QAM and 16QAM
FEC: FlexLDPC, TPC, Viterbi, TCM and Reed-Solomon
Transmit Output Level: +5 to -35 dBm
Transmit Interface: 50-ohm N-type
Receive Interface: 75-ohm F-type
Acquisition Range: ±100 Hz to ±1.25 MHz
Interface Options: Ethernet IP, serial, HSSI and dual G.703/E1
Ethernet Modes: Bridge and router
Network Features: QoS and optional SCPS TCP/IP acceleration
BUC Power: Multiple voltage options with capacity up to 250 W
LNB Power: Selectable off, 13 VDC or 18 VDC
Reference Frequency: High-stability 10 MHz reference
Management: Front-panel LCD and keypad, web browser, SNMP, RS-232 and RS-485
Input Power: 90–264 VAC or optional -48 VDC
Operating Temperature: 0°C to +50°C
Dimensions: 19 × 12 × 1.75 inches, 1RU
Weight: Approximately 7 lb fully configured

Key Features:

• High-performance L-band satellite modem

• Data rates up to 29.52 Mbps

• Advanced FlexLDPC with multiple block sizes and code rates

• Optional TPC, Viterbi, TCM and Reed-Solomon FEC

• Low latency and fast carrier acquisition

• Flexible external BUC power configurations

• Integrated selectable LNB power

• High-stability 10 MHz BUC and LNB reference

• Front-panel BUC and LNB voltage and current monitoring

• Advanced Ethernet IP bridge and router modes

• Optional SCPS TCP/IP acceleration

• Dual G.703/E1 with full and fractional drop-and-insert

• Automatic Uplink Power Control

• Built-in bidirectional BER test set

• Built-in 1:1 redundancy with BUC, LNB and reference switching
