Datum PSM-500L L-Band VSAT/SCPC Satellite Modem

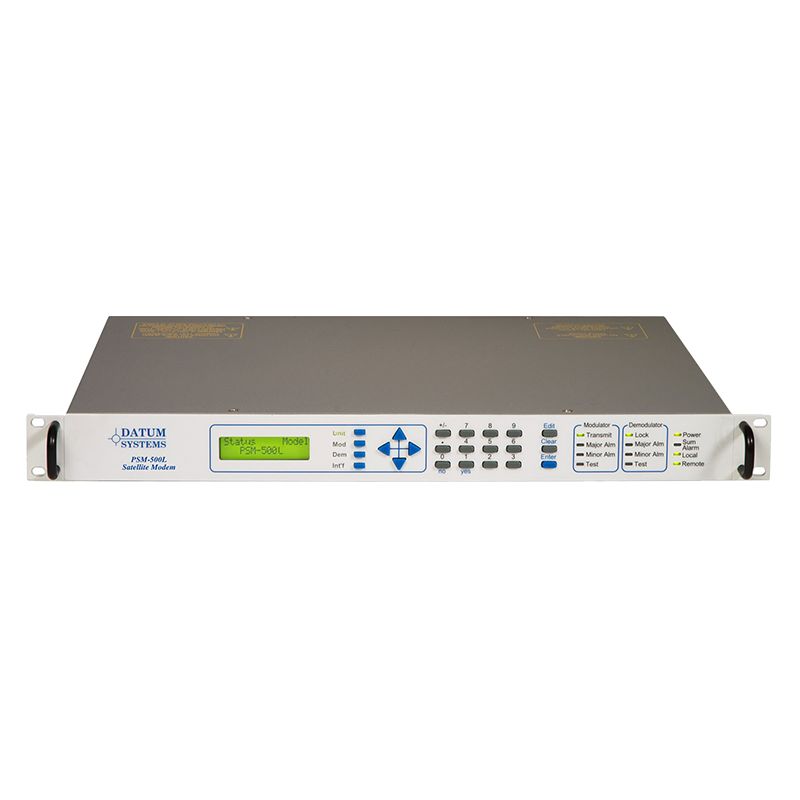

Datum Systems PSM-500L L-Band Satellite Modem

The Datum Systems PSM-500L is a high-performance L-Band satellite modem designed for professional SCPC and burst SATCOM applications. Supporting data rates from 1.2 kbps up to 29.5 Mbps, it delivers excellent BER performance, fast acquisition, and low latency using advanced FlexLDPC coding. The modem provides flexible external BUC power options, integrated LNB power, and a high-stability 10 MHz reference distributed through the RF connectors, making it ideal for fixed, mobile, and networked satellite architectures.

Frequency Band (Tx): 950–1750 MHz

Frequency Band (Rx): 950–1900 MHz
Data Rate Range: 1.2 kbps to 29.5 Mbps
Symbol Rate: 2.4 ksps to 14.76 Msps
Modulation: BPSK, QPSK, OQPSK, 8PSK, 8QAM, 16QAM
FEC: FlexLDPC, TPC, Viterbi, Trellis, Reed Solomon
10 MHz Reference: High-stability OCXO, internal and external support
BUC Power: External supply options up to 250 W
LNB Power: Selectable Off / 13 V / 18 V
Tx Output Level: +5 to –35 dBm
Interfaces: RS232, RS422, V.35, V.36, EIA-530(A), Ethernet IP, Dual G.703/E1
Operating Modes: SCPC continuous, optional burst
Redundancy: External redundancy configurations supported
Operating Temperature: 0 °C to +50 °C
Storage Temperature: –20 °C to +70 °C
Form Factor: 1RU, 19-inch rack mount
Dimensions: 19 × 12 × 1.75 in
Weight: typ. 7 lb fully configured
Compliance: CE, UL, CSA, RoHS
