Datum PSM-500LT L-Band Satellite Terminal with Internal BUC Power

Datum PSM-500LT L-Band Satellite Terminal with Internal BUC Power

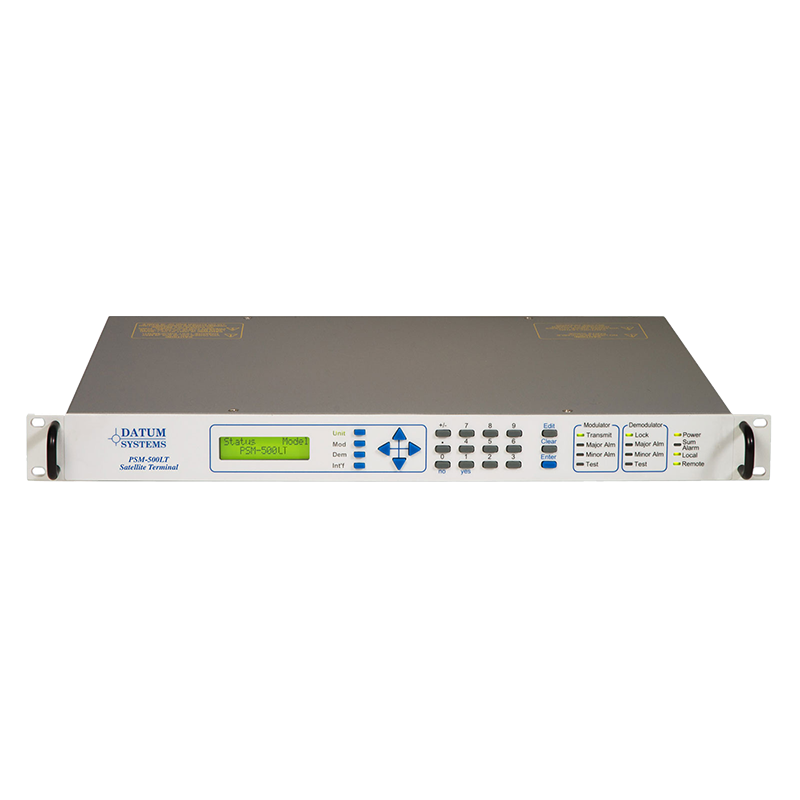

The Datum Systems PSM-500LT is an integrated L-band satellite modem terminal combining a high-performance SCPC modem, internal BUC and LNB power supplies, and a high-stability 10 MHz reference in a compact 1RU chassis.

The PSM-500LT provides transmit coverage from 950–1750 MHz, receive coverage from 950–1900 MHz and data rates from 1.2 kbps to 29.52 Mbps. FlexLDPC coding with selectable block sizes and code rates delivers high bandwidth efficiency and low latency, while optional TPC, Viterbi, TCM and Reed-Solomon support existing network requirements.

Integrated BUC and LNB power simplifies remote-terminal installation by eliminating separate power-insertion equipment. The front panel provides voltage and current monitoring, along with independent control of BUC power, LNB power and the 10 MHz reference.

Transmit Frequency Range: 950–1750 MHz
Receive Frequency Range: 950–1900 MHz
Operating Modes: Continuous SCPC transmit and receive; optional burst transmit
Data Rate: 1.2 kbps–29.52 Mbps
Symbol Rate: 2.4 ksps–14.76 Msps
Data-Rate Resolution: 1 bps
Modulation: BPSK, QPSK, OQPSK, 8PSK, 8QAM and 16QAM
FEC: FlexLDPC, TPC, Viterbi, TCM and Reed-Solomon
Transmit Output Level: +5 to -35 dBm in 0.1 dB steps
Transmit Interface: 50-ohm N-type
Receive Interface: 75-ohm F-type
Acquisition Range: ±100 Hz to ±1.25 MHz
Interface Options: Ethernet IP, serial, HSSI and dual G.703/E1
Ethernet Modes: Bridge and router
Network Features: QoS and optional SCPS TCP/IP acceleration
BUC Power: Internal supply with selectable voltage and power configurations
Maximum BUC Power: Up to 250 W, depending on configuration
LNB Power: Selectable off, 13 VDC or 18 VDC
Reference Frequency: Internal or external 10 MHz
Management: Front-panel LCD and keypad, web browser, SNMP, RS-232 and RS-485
Input Power: 90–264 VAC or optional -48 VDC
Operating Temperature: 0°C to +50°C
Dimensions: 19 × 12 × 1.75 inches, 1RU
Weight: Approximately 7 lb fully configured

Key Features:

• Complete L-band satellite terminal in a 1RU chassis

• Integrated BUC and LNB power supplies

• High-stability 10 MHz BUC and LNB reference

• Front-panel BUC and LNB voltage/current monitoring

• Data rates up to 29.52 Mbps

• Advanced FlexLDPC with multiple block sizes and code rates

• Optional TPC, Viterbi, TCM and Reed-Solomon FEC

• Low latency and fast carrier acquisition

• Advanced Ethernet bridge and router modes

• Optional SCPS TCP/IP acceleration

• Dual G.703/E1 with full and fractional drop-and-insert

• Automatic Uplink Power Control

• Built-in bidirectional BER test set

• Built-in 1:1 redundancy with BUC, LNB and reference switching

• Suitable for cellular backhaul, enterprise and mobile terminals
