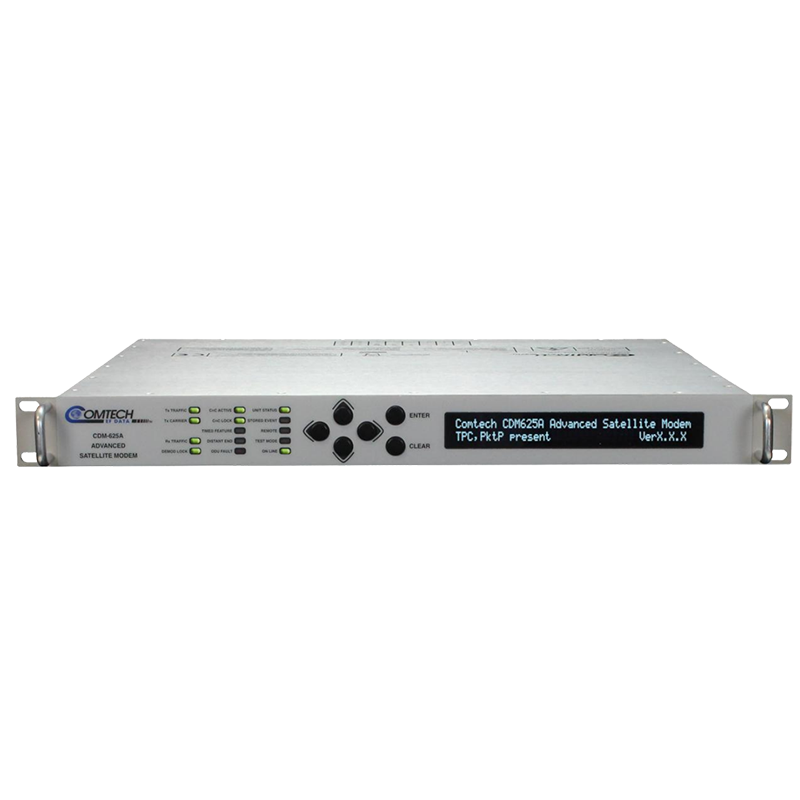

Comtech CDMER-625A Environmentally Resistant Satellite Modem

Comtech CDMER-625A Environmentally Resistant Satellite Modem

The Comtech CDMER-625A is the environmentally resistant version of the CDM-625A satellite modem, designed for controlled installations exposed to elevated levels of dust, sand and salt. Urethane conformal coating and protective interface covers provide enhanced environmental protection, while an extended operating temperature range supports operation up to 60°C. The modem also offers VersaFEC-2, ACM and optional DoubleTalk Carrier-in-Carrier for efficient, reliable satellite connectivity.

Frequency Range: 50–180 MHz; optional 950–2250 MHz

Data Rate: 18 kbps to 25 Mbps
Symbol Rate: 18 ksps to 12.5 Msps
Modulation: BPSK, QPSK, OQPSK, 8PSK, 8-QAM, 16-QAM and 32-ARY
Operating Temperature: 0°C to 60°C
Data Interfaces: EIA-422/530, V.35, G.703, ASI, LVDS, HSSI and Ethernet configurations
Applications: Mobile backhaul, IP and G.703 trunking, maritime communications, government networks and demanding controlled installations

Key Features

• Environmentally resistant construction

• Urethane conformal coating and protective connector covers

• MIL-STD-810G tested for blowing dust, blowing sand and salt fog

• MIL-STD-810G high and low temperature and non-operating vibration testing

• Non-nutrient materials resistant to fungal growth

• Extended operating temperature up to 60°C

• Optional DoubleTalk Carrier-in-Carrier bandwidth compression

• VersaFEC and VersaFEC-2 with ACM and CCM

• Optional packet processor with header and payload compression

• Advanced QoS, VLAN and managed-switch capabilities

• Independently selectable 70/140 MHz and extended L-band IF

• Four-port 10/100Base-T managed Ethernet switch

• Automatic Uplink Power Control and EDMAC

• IEEE 1588v2 Precision Time Protocol support

• 1:1 and 1:10 redundancy configurations available

• Backward compatible with the Comtech CDM-625

Important: The CDMER-625A is intended for controlled indoor installations and is not designed for outdoor or uncontrolled environments.
