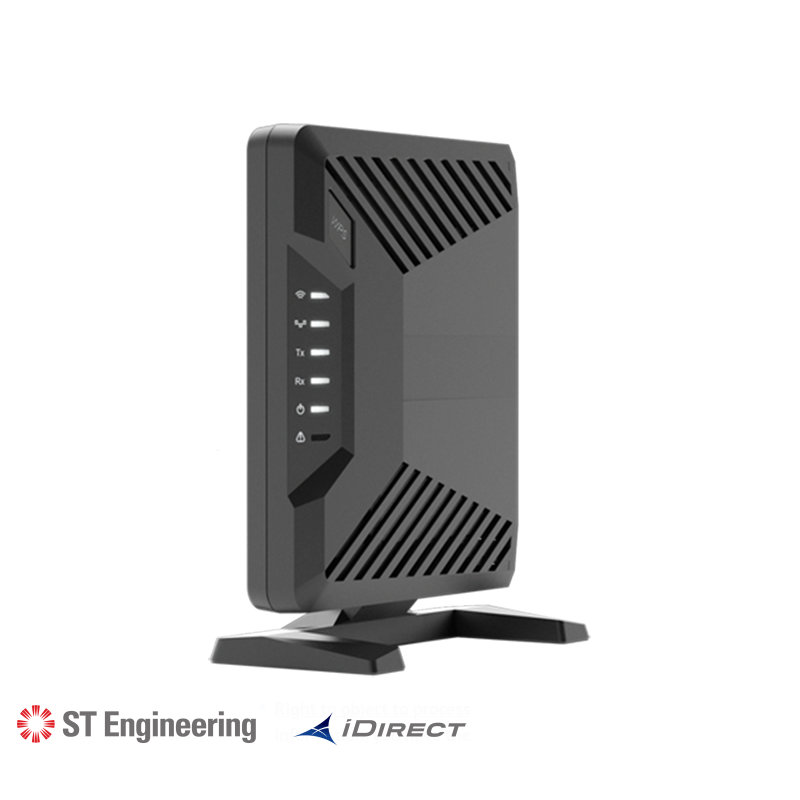

ST Engineering iDirect MDM2010 Satellite Modem
DVB-S2X High Throughput VSAT Modem for Dialog Platform
The iDirect MDM2010 Satellite Modem is a compact DVB-S2X High Throughput Satellite (HTS) VSAT modem for the Dialog platform, supporting MF-TDMA and Mx-DMA with up to 100 Mbps throughput for enterprise and government networks.
Features
DVB-S2 / DVB-S2X support up to 480 Msps outbound
DVB-S2X MODCODS up to 64APSK
Support for both MF-TDMA and Mx-DMA MRC (Multi-Resolution Coding) returns up to 10 Msps
Throughput: up to 100 Mbps DL / 10 Mbps UL
Support for single cable and dual cable outdoor units
Unique Point & Play easy-installation capability
Easy to use multilingual web GUI for installation, diagnostics and troubleshooting
Key Specifications
Frequency: Tx 2750–3000 MHz; Rx 950–2150 MHz
Modulation: QPSK, 8PSK, 16APSK, 32APSK, 64APSK (DVB-S2X)
Forward Link: up to 480 Msps
Return: MF-TDMA, Mx-DMA MRC (up to 10 Msps)
Throughput: up to 100 Mbps DL / 10 Mbps UL
Interface: 1× Gigabit Ethernet; optional Wi-Fi
RF Connector: F-Type, 75 Ohm
Power: typ. 21 W (max. 60 W), AC or 24 VDC
Size: 8.2 × 17.7 × 21.2 cm; Weight: 0.48 kg
MDM2010
Specific References
