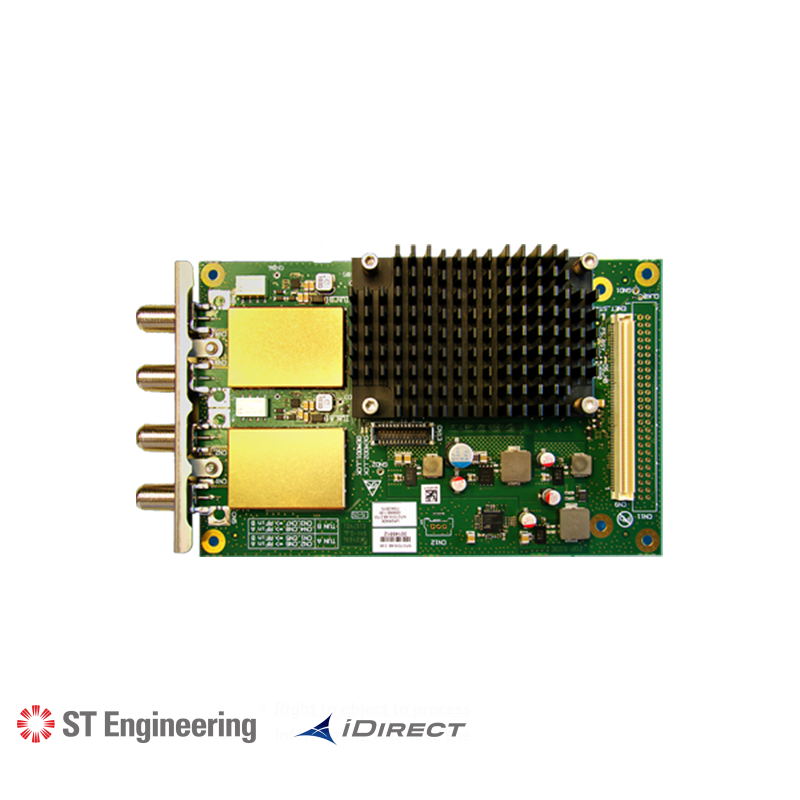

iDirect OD6000 Satellite Demodulator Board

iDirect OD6000 OEM Satellite Demodulator Board

The iDirect OD6000 OEM Satellite Demodulator Board is a high-performance DVB-S2X compliant demodulator designed for broadcast, contribution, and satellite distribution applications.

Supporting advanced modulation schemes up to 64APSK and data rates up to 190 Mbps, the OD6000 delivers reliable and efficient signal reception for OEM integrators, teleports, and professional satellite systems.

Key Features

DVB-S2X, DVB-S2, DVB-S and DVB-DSNG compliant

Modulation up to 64APSK (license dependent)

Symbol rates up to 60 Msps

Data rates up to 190 Mbps

4× L-band inputs (selectable)

Automatic MODCOD detection

Multistream and VCM support

Adaptive equalizer for improved link performance

LNB power and control (13/18V, 22 kHz)

Clean Channel Technology® support

Key Specifications

Input Frequency: 950 – 2150 MHz (L-band)

Symbol Rate: 1 – 60 Msps

Max Throughput: 190 Mbps

Modulation: QPSK, 8PSK, 16APSK, 32APSK, 64APSK

Interfaces: DVB-SPI output

Power Supply: +5V DC

LNB Power: up to 350 mA

Applications

Broadcast and video distribution

Satellite contribution and DSNG

Teleport and gateway infrastructure

Data broadcast and monitoring

OEM IRD and receiver integration
