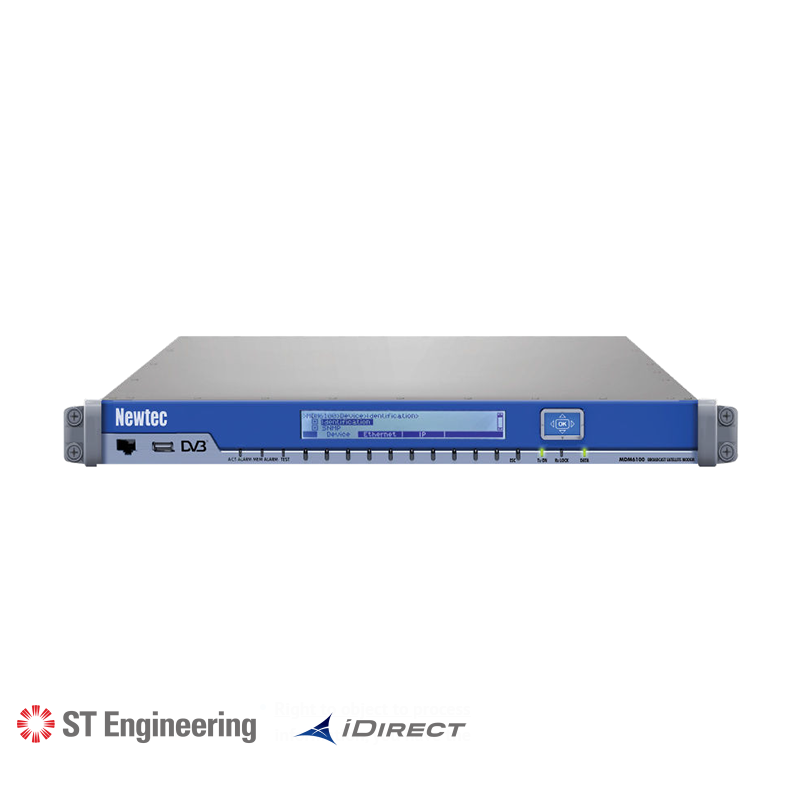

iDirect MDM6100 Broadcast Satellite Modem

iDirect MDM6100 Broadcast Satellite Modem – DVB-S2X Modem for Broadcast & Contribution

The iDirect MDM6100 Broadcast Satellite Modem is a professional DVB-S2X broadcast modem for DTH, contribution, and headend applications, delivering high spectral efficiency, ultra-reliable transmission, and advanced transport stream processing for broadcast networks.

Key Features & Specifications

Network Type: Broadcast modem (modulator, demodulator, or full modem)

Standards: DVB-S, DVB-S2, DVB-S2X, DVB-DSNG, S2 Extensions

Throughput: Up to ~216 Mbps

Symbol Rate: 256 kbaud to 72 Mbaud

Modulation: QPSK up to 256APSK

FEC: LDPC/BCH, VCM support

Interfaces: ASI and Gigabit Ethernet (TS over IP)

Frequency: L-Band (950–2150 MHz), optional IF (50–180 MHz)

RF Options: Optional integrated C-band / Ku-band upconverter

Efficiency: Clean Channel Technology®, Equalink® 3 (up to 15% gain)

Reliability: 1+1 and N+1 redundancy support, fast switch-over

Processing: Built-in MPEG TS analyzer, SMPTE 2022 FEC support

Security: BISS encryption (optional)

Control: Web GUI, SNMP, REST API

Form Factor: 1U rack-mount

Applications: DTH broadcast, video contribution, headend distribution
